Concrete Waterstops
In most concrete structures and elements, a particular type of joint (construction, contraction, control, expansion or isolation) could be designed for a number of varied structural design reasons. Concrete structures are only as watertight as these joints and, due to this, a "waterstop" product will be required if the structure is water retaining or water excluding. Waterstops are a critical element to many and varied projects including water tanks, swimming pools, water treatment plants and chemical facilities.
Safari Building Products is a major stockist of a broad range of waterstops including Hydrotite, Leakmaster, PVC rearguard, Supercast PVC, Superstop 47B, Sikaswell and much more. And yes, we ship Australia wide, delivering direct to construction sites in Sydney, Melbourne, Brisbane, Perth, Adelaide, Darwin and right across rural Australia! Our range includes:
Hydrotite is a water swellable waterstop strip consisting of a unique combination of expanding hydrophilic materials and non-expanding chloroprene rubber co-extruded together. Hydrotite is a reliable and proven product for sealing concrete joints against water ingress or leakage.
The expanding section of Hydrotite is blue with the non-expanding section being black. The co-extruded design means that the expansion is directed across the joint for maximum sealing performance. This expansion creates an effective compression seal within joints which shuts out the water path.
Safari Group stocks large volumes of Hydrotite in our warehouses across Australia in strip sizes of 20mm wide x 10mm thick, and 25mm wide x 7mm high, both in 10m long rolls. Circular sections are also available.
We ship Hydrotite direct to construction sites in Sydney, Melbourne, Brisbane, Perth, Adelaide, Darwin, and to mines and water projects all around Australia. Call us to discuss your project requirement!
Click here to see our full range of other waterstop products.
HYDROTITE HYDROPHILIC WATERSTOPS
Hydrotite is the brand name for a state of the art hydrophilic waterstop with unmatched durability and water sealing capacity. Hydrotite consists of a unique combination of expanding hydrophilic materials and non-expanding chloroprene rubber co-extruded together to form a single strip. The expanding section is blue with the non-expanding section being black. The co-extruded design means that the expansion is directed across the joint for maximum sealing performance. This expansion creates an effective compression seal within joints which shuts out the water path.
This is available in the profiles below (most popular @ 10x20mm or at 7x25mm, in 10m rolls).
SUPERCAST PVC WATERSTOPS
Sure-Stop Supercast PVC Waterstops are at the cutting edge of technology and design and comply to international standards, extruded from specially compounded PVC. Designed for use in water retaining and water excluding structures where a seal is needed for expansion & construction joints, this range includes designs allowing for expansion, contraction and other movement.
The range of profiles for both central and external placement within the joint ensure a continuous barrier making Safari's PVC Waterstops ideal for preventing water penetration. These profiles are available in rolls with separate intersections supplied to simplify and minimise on-site work.
Safari stock a huge range of Sure-Stop, Rear-Guard and Centre-Cast (also known as Centre-Bulb) waterstops. We can also arrange to custom produce PVC waterstops in accordance to your projects material property specifications. Contact us for further information.
We ship PVC Waterstops direct to construction sites and water projects anywhere in Australian, including Sydney, Melbourne, Brisbane, Perth, Adelaide and Darwin. Call us to discuss your waterstop project requirement today!
Sure-Stop® PVC Waterstops lead the way in high technology and design, and comply to international standards. Sure-Stop® PVC Waterstops are extruded from specially compounded PVC in accordance with BS2782. They are designed for use in water retaining and water excluding structures where a positive seal is required for poured in-situ concrete expansion, construction and contraction joints.
The range of profiles for both centre-cast and externally placed applications when embedded into the concrete, form a continuous barrier making Sure-Stop® PVC Waterstops ideal for preventing water penetration. These profiles are available in rolls with separate intersections supplied to simplify and minimise on-site fabrication. Concrete structures are only as watertight as the waterstops that join them.
Sure-Stop® PVC Waterstops are designed to allow for expansion, contraction and other movements that can cause joints to open and close. The efficiency of any waterstop is very dependent on good workmanship and on full compaction of the surrounding concrete. Optimum performance will be achieved if the waterstop is installed by keeping these factors in mind.
Safari stock a huge range of Sure-Stop, Rear-Guard and Centre Cast waterstops with scope for custom profiles. The Rear-Guard are used for external applications where the back of the PVC sits on the formwork. The “Centre-Bulb” waterstops are designed to be completely encased in concrete on both sides of the joint.
Click here to see our full range of other waterstop products!
Superswell 47B® Hydrophilic Butyl Waterstop Seal is a unique sealing compound which expands in a controlled fashion when exposed to moisture, forming a compression seal in concrete joints. Commonly known as Superstop, Superswell 47B® is ideal for use in horizontal and vertical construction joints for cast in-situ concrete structures.
Superswell & Superstop 47B® are manufactured utilising a specialised mixing process which encapsulates hydrophilic materials into a Butyl base creating a controlled, moisture-activated seal. The product has the structural integrity and the long term durability features of Butyl, as well as the ability to expand to create a SELF-HEALING JOINT WATERSTOP SEAL.
Superswell 47B® complies to NSF/ANSI Standard 61 Drinking Water System Components – Health Effects, ensuring Superswell 47B® is safe for use in drinking water applications. Therefore, it is suitable to use in various potable water retaining structures like water tanks, swimming pools and reservoirs.
Safari Group is a major supplier of Superswell/Superstop 47B to water and marine projects all over Australia. We deliver direct to sites in Sydney, Melbourne, Brisbane, Perth, Adelaide and Darwin. Call us today to discuss your waterstop requirements!
Click here to view our full range of waterstop products.
SUPERSTOP 47B HYDROPHILIC BUTYL WATERSTOP SEAL
Superswell 47B Hydrophilic Butyl Waterstop Seal is a unique compound which demonstrates controlled expansion when exposed to moisture, forming a compression seal in concrete joints. It is ideal for use in horizontal and vertical construction joints for cast in-situ concrete structures as an upgrade to bentonite waterstops.
Superswell 47B contains encapsulated hydrophilic materials in a Butyl base creating a controlled, moisture-activated seal. The product has the structural integrity and the long term durability features of Butyl, as well as the ability to expand to create a self-healing joint waterstop seal.
Superswell 47B complies to NSF/ANSI Standard 61 Drinking Water System Components – Health Effects, meaning that this "licorice-looking" waterstop is safe for use in drinking water applications and is suitable for use in potable water retaining structures such as tanks, pools and reservoirs
LEAKMASTER LV-Z SEALANT
Leakmaster LV-Z is a one-component polyurethane hydrophilic (water-swelling/waterstop) sealant with unique physical properties. It can be applied to joints in concrete, in civil engineering construction and water services for seals where conventional seals are impractical. It is also regularly used as an adhesive for other waterstop items such as Hydrotite and SuperSwell 47B to ensure adherence and sealing to rough concrete.
After curing it has excellent physical properties together with rubber-like elasticity and water sealing properties including the ability to support 20m heads of water. Leakmaster expands approximately two times its original volume when exposed to water and will adhere to plastics, glass, metal, concrete and most other building materials. Safari stock Leakmaster LV-Z in 320mL cartridges which can be used in a standard caulking gun.
Leakmaster LV-Z is a one-component polyurethane hydrophilic (water-swelling/waterstop) sealant with unique physical properties. It can be applied to joints in concrete, in civil engineering construction and water services for seals where conventional seals are impractical.
Leakmaster sealant is also regularly used as an adhesive for other waterstop items such as Hydrotite and SuperSwell 47B.
After curing it has excellent physical properties together with rubber-like elasticity and water sealing properties including the ability to support 20m heads of water. Leakmaster expands approximately two times its original volume when exposed to water and will adhere to plastics, glass, metal, concrete and most other building materials.
Safari Group stock Leakmaster LV-Z in 320mL cartridges which can be used in a standard caulking gun.
Click here to see our full range of waterstop products.

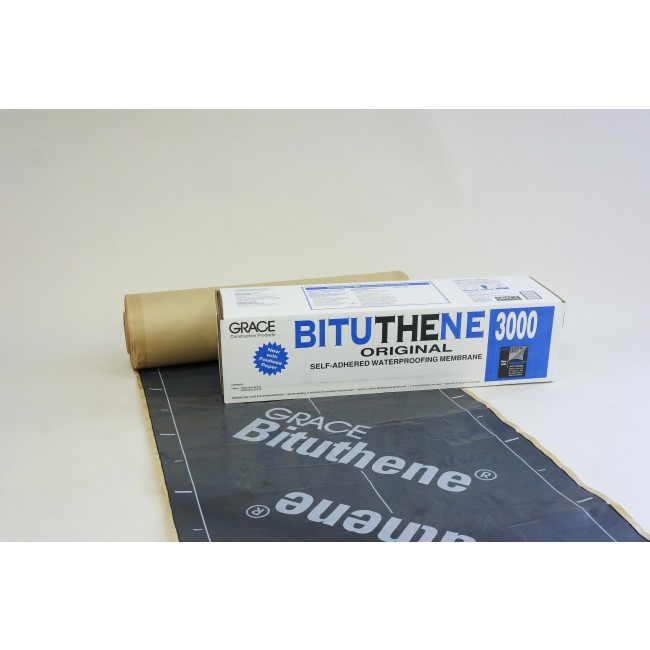

Bituthene 3000 is a self-adhesive, rubberised asphalt/polyethylene waterproofing membrane used in basements and substructures.
Bituthene 3000 is ideal for waterproofing concrete, masonry and wood surfaces where in-service temperatures will not exceed 130 °F (54°C). It can be applied to foundation walls, tunnels, earth sheltered structures and split slab construction, both above and below grade.
Bituthene 3000 is 1.5 mm thick and is supplied in 1 m wide x 20 m long rolls. It is also available pre-slit to 250mm. It is unrolled, sticky side down, onto concrete slabs or applied onto vertical concrete faces. Surfaces should be primed with Bituthene Solvent Primer. Continuity is achieved by overlapping a minimum 50 mm and firmly rolling the joint.
Bituthene 3000 is extremely flexible. It is capable of bridging shrinkage cracks in the concrete and will accommodate minor differential movement throughout the service life of the structure.
Related Product: Click here to check out our great range of waterproofing products for concrete structures!
BITUTHENE 3000
Bituthene 3000 is a self-adhesive, rubberised asphalt/polyethylene waterproofing membrane used in basements and substructures.
BITUTHENE 5000
Bituthene 5000, also known as Heavy Duty Bituthene, is a waterproofing material incorporating high strength, heat-resistant mesh embedded in a layer of self-adhesive rubberised asphalt. It is supplied in rolls interwound with special release paper which protects the adhesive surface until ready for use and allows easy handling during installation.
Bituthene 5000, also known as Heavy Duty Bituthene, is a waterproofing material incorporating high strength, heat-resistant mesh embedded in a layer of self-adhesive rubberised asphalt. It is supplied in rolls interwound with special release paper which protects the adhesive surface until ready for use and allows easy handling during installation.
Biituthene 5000 is supplied in rolls 1.00m wide, 20.0m long and in min. membrane thickness of 1.6mm and 2.0mm. The rubberised asphalt is covered with release paper that is removed during installation. The membrane is self-adhesive and cold applied. No special adhesive or equipment is necessary to form laps. Bituthene 5000 is an excellent waterproofing membrane for plazas, bridges, vehicular traffic structures, or parking decks to be overlaid with an asphalt concrete wearing course. It is adaptable for either new construction or repair applications.
Bituthene 5000 strips are recommended for the restoration of concrete pavements with asphalt concrete overlays to prevent premature deterioration of asphalt paving over the transverse and longitudinal joints caused by reflection cracking and sub-base erosion.
Bituthene 5000 membrane will remain flexible to perform over the extreme range of service temperatures expected on plazas, bridges, and parking decks. Its toughness and flexibility allow it to cycle over small cracks, even during critical winter months. The membrane is highly resistant to water and deicing salt solutions. Electrical resistance measurements on structures have been exceptionally high to indicate the effectiveness of Bituthene 5000 in preventing water migration into decks.
Safari also supply Form Tie Waterstops which are produced from a unique hydrophilic rubber sealing compound.
This system seals the conduit used for formwork tie bars both internally (with swellable plugs) and externally with a swellable ring to ensure water-tightness in water-excluding areas such as retaining walls, tunnels/subways, underground car parks, basement walls and manholes/pits as well as water-retaining structures like tanks, reservoirs, dams, pools, bund walls and sewage/water treatment plants.
These expand in a controlled fashion when exposed to moisture to form a compression seal inside or around the form-tie system in the concrete structure, to give a permanent flexible watertight seal.
Other advantages include:
Available in many different sizes, shapes and profiles to suit the formwork form-tie system to be used.
Ability to expand up to 400% in contact with potable water and over 200% expansion in salt water.
Has been tested to withstand over 50 metres of hydrostatic water head pressure. (Test report available upon request)
Non-toxic and can be used in potable water structures.
Unaffected by repeated wet and dry cycles.
Fast and simple to install.
FORM TIE RINGS AND PLUGS
Safari also supply Form Tie Waterstops which are produced from a unique hydrophilic rubber sealing compound.
This system seals the conduit used for formwork tie bars both internally (with swellable plugs) and externally with a swellable ring to ensure water-tightness in water-excluding areas such as retaining walls, tunnels/subways, underground car parks, basement walls and manholes/pits as well as water-retaining structures like tanks, reservoirs, dams, pools, bund walls and sewage/water treatment plants.
These expand in a controlled fashion when exposed to moisture to form a compression seal inside or around the form-tie system in the concrete structure, giving a permanent flexible watertight seal.
