Practical Longitudinal Channelising for Traffic, Pedestrian & Work Areas

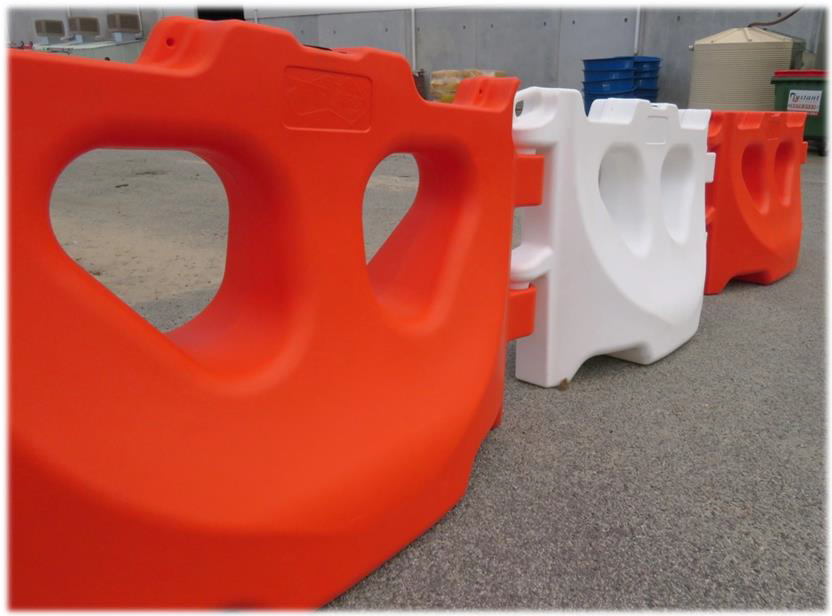

The Trafix 1500 Water Filled Safety Barrier is a practical and cost-effective solution for traffic channelising, pedestrian delineation and temporary work area separation.

Designed for easy handling, storage and connection, the Trafix 1500 features integrated connecting lugs with no loose pins, forklift-ready pack configurations and a water-filled design that provides increased weight when required.

IMPORTANT: Specifications can change without notice.
All dimensions are in millimetres (mm).

Trafix 1500 – Key Features

• 1500 mm usable length

• Approx. 11 kg empty

• Approx. 160 kg when full

• Ø70 mm filler

• Insect-proof overflow

• Ø50 mm drain

• Connecting lugs – no loose pins

• Packable in 3-pack and 6-pack configurations

• Six-pack forklift ready

• UV stabilised

• Can be moved by forklift when full

• Wear / grip treads

• Handles designed to assist worker handling and safety

• Available in two colours

• Suitable for pedestrian or work area delineation

• Orange version manufactured using up to 25% recycled material

• Recyclable at end of life

Designed for Traffic & Work Area Delineation

The Trafix 1500 is designed to help establish clear boundaries around temporary work and pedestrian areas.

Its longitudinal configuration allows individual barriers to be positioned together to create a continuous line of delineation.

Potential applications include:

• Temporary traffic channelising

• Road and infrastructure works

• Construction sites

• Work zone delineation

• Pedestrian management

• Temporary pedestrian separation

• Site access areas

• Maintenance projects

• General traffic management applications

Water-Filled Design

The Trafix 1500 is designed to be filled with water to increase its weight and stability when required.

At approximately 11 kg empty, the barrier is relatively easy to handle before filling. Once full, the barrier weighs approximately 160 kg.

Ø70 mm Filler

The large Ø70 mm filler provides access for filling the barrier with water.

Insect-Proof Overflow

An insect-proof overflow is incorporated into the barrier design.

Ø50 mm Drain

The Ø50 mm drain allows the barrier to be emptied when required.

Connecting Lugs – No Loose Pins

One of the practical features of the Trafix 1500 is its integrated connecting lug system.

Unlike systems that require separate loose connecting pins, the Trafix 1500 uses connecting lugs, helping simplify installation, handling and storage.

This provides a convenient way to connect barriers together when creating a continuous line of channelisation.

Designed for Easy Handling

The Trafix 1500 incorporates features designed to make handling easier for workers.

Worker Handles

Integrated handles provide dedicated points for handling the barrier and can assist workers when positioning empty units.

Wear / Grip Treads

The barrier incorporates wear and grip treads, providing additional design features for handling and use in work environments.

Forklift Ready

The Trafix 1500 is available in a six-pack configuration designed for forklift handling, helping simplify transport and storage.

Filled barriers can be moved by forklift when appropriate equipment, procedures and site conditions permit.
