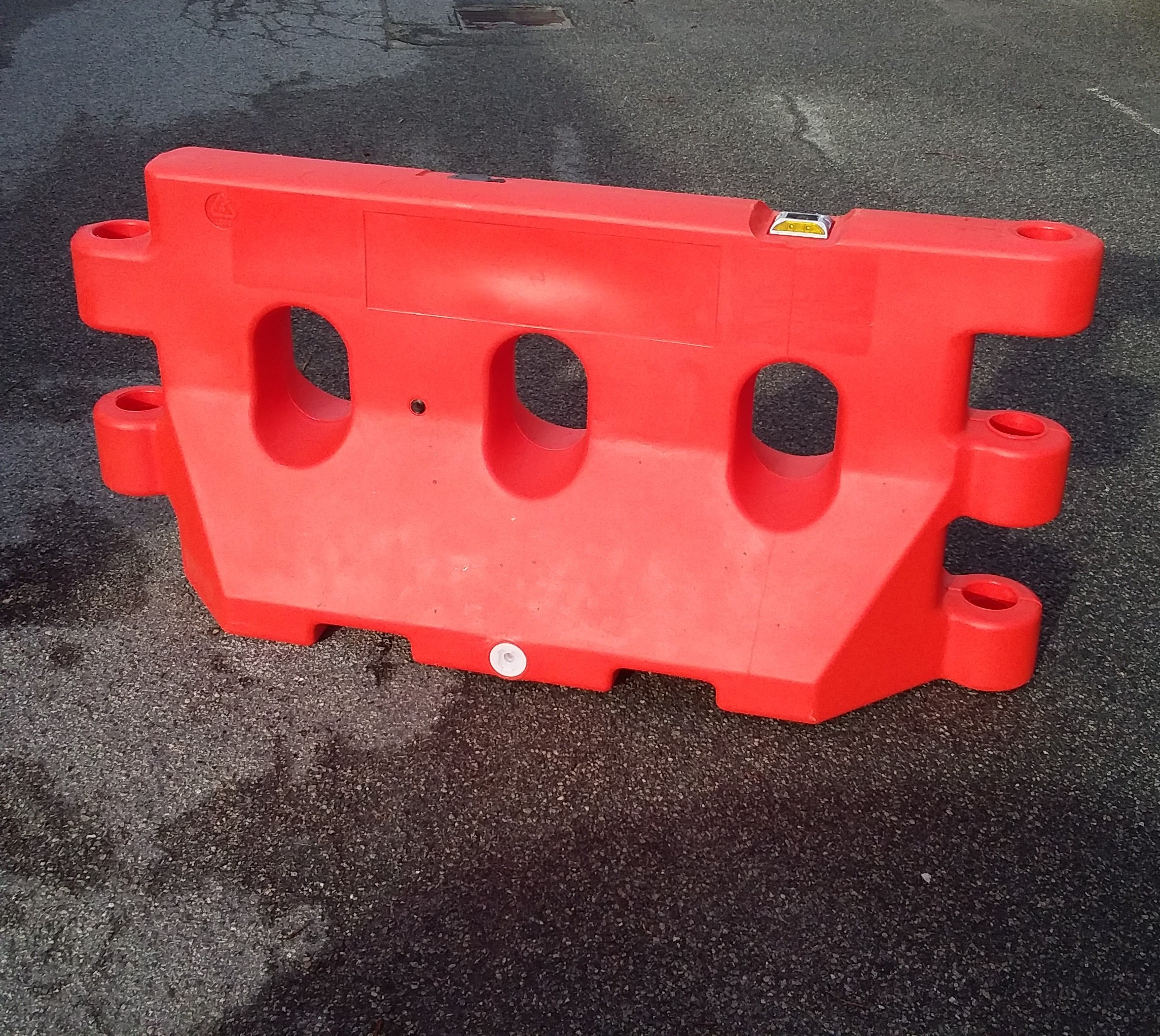

Armoursafe 1800 Water Filled Barriers
Armoursafe 1800 Water Filled Barriers
Armoursafe 1800 water-filled barriers provide a practical interlocking system for separating work areas, defining pedestrian routes and controlling access around construction, civil, mining and commercial sites.
Lightweight when empty for transport and initial placement, each barrier can be filled with water on site to provide approximately 300 kg of ballast. Connecting pins allow multiple barriers to be joined into a continuous, clearly visible barrier run.
Important: The Armoursafe 1800 is not a speed-rated or crash-rated safety barrier. It must not be represented or used as a substitute for an approved crash barrier where vehicle-impact protection, MASH testing or road-authority approval is required.
Key features
1800 mm usable barrier length
Interlocking design with connecting pins
Approximately 20 kg empty for easier transport and setup
Approximately 300 kg when filled
280 L water-ballast capacity
UV-stabilised polyethylene construction
Forklift handling points for appropriate on-site repositioning
Insect-resistant overflow and drain arrangement
Available in red and white
Suitable for forming straight or angled barrier runs
Typical applications
Armoursafe water-filled barriers are suitable for temporary delineation and access control in applications such as:
Civil and commercial construction sites
Pedestrian walkways and exclusion zones
Car parks, loading areas and site entrances
Mine and industrial sites
Events and public areas
Temporary work zones where a non-crash-rated delineator has been specified
Separating work areas from low-speed site movements
The responsible site manager, traffic-management designer or project engineer should determine whether a non-crash-rated barrier is appropriate for the intended location.
Sizes and specifications
Usable length: 1800 mm
Overall length: 2000 mm
Height: 900 mm
Base depth: 600 mm
Empty weight: Approximately 20 kg
Filled weight: Approximately 300 kg
Water capacity: Approximately 280 L
Material: UV-stabilised polyethylene
Colours: Red and white
Barriers should be placed and connected before filling. Follow the project’s handling procedures when filling, draining, repositioning or removing the units.
Perth supply and nationwide freight
Safari Building Products supplies Armoursafe water-filled barriers for projects throughout Perth and Western Australia. Nationwide freight can also be arranged for project and bulk quantities.
For an accurate quotation, send us your required quantity, preferred colour, delivery postcode and any site unloading requirements.
Related site-safety products
Safari can also assist with safety and site equipment, steel crowd-control barriers, A-frame safety barriers, traffic cones, T-top bollards, barrier mesh, barrier tape and safety signage.
Frequently asked questions
Are Armoursafe 1800 barriers crash rated?
No. The Armoursafe 1800 is not a speed-rated or crash-rated barrier. Consult the project’s traffic-management plan or responsible engineer if vehicle-impact protection is required.
How much does each barrier weigh when filled?
Each barrier weighs approximately 20 kg empty and approximately 300 kg when filled with its 280 L water ballast.
Can multiple barriers be connected?
Yes. The barriers use connecting pins to create continuous straight or angled barrier runs.
Where can these barriers be used?
They are intended for worksite delineation, pedestrian guidance, exclusion zones, site access control and other applications where a non-crash-rated physical barrier is appropriate.
Can Safari freight water-filled barriers outside WA?
Yes. Safari primarily supplies Perth and WA projects, with nationwide freight available. Contact our team with the quantity and destination postcode for a freight quotation.
