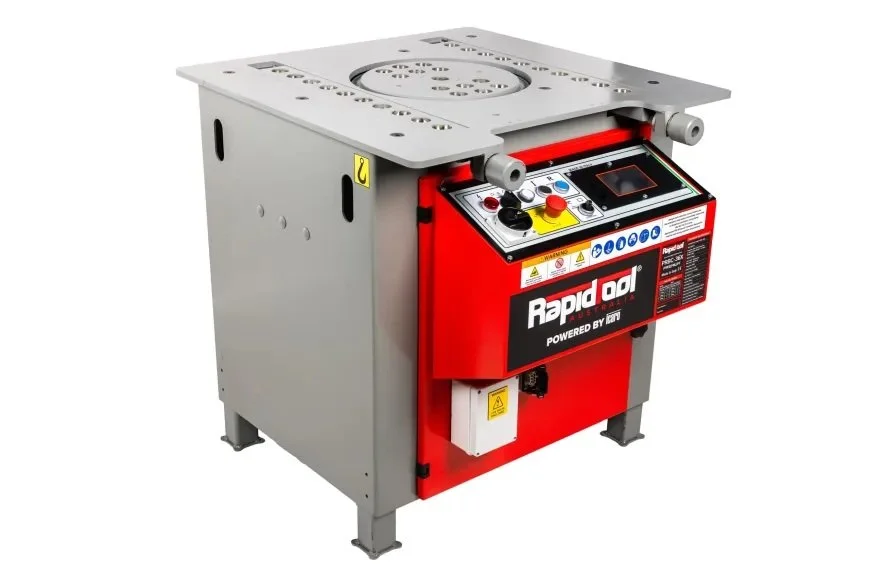

Heavy-Duty Digital Rebar Bender & Cutter for High-Volume Production

The RAPIDTOOL PRBC-36X Premium Rebar Bender + Cutter is a heavy-duty, production-grade machine designed for efficient, accurate and repeatable rebar processing. Combining rebar bending and cutting capabilities in one powerful machine, the PRBC-36X is ideal for precast concrete facilities, rebar fabrication workshops, construction companies and high-volume reinforcement steel processing environments.

With a 6–36mm rebar bending capacity and 6–30mm rebar cutting capacity, the PRBC-36X provides the versatility required for a wide range of reinforcement bar applications. Its advanced digital control system allows operators to preset multiple bend angles, while the integrated bend counter helps monitor production and maintain consistency.

Designed and manufactured in Europe through the RAPIDTOOL – ICARO partnership, the PRBC-36X is engineered for demanding Australian and New Zealand working environments and supported locally by RAPIDTOOL with spare parts, servicing and priority technical support.

Key Features

• 6–36mm Rebar Bending Capacity – Handles a wide range of reinforcement bar sizes.

• 6–30mm Rebar Cutting Capacity – Provides powerful cutting performance for production environments.

• Combined Bending & Cutting – Two essential rebar processing functions in one heavy-duty machine.

• Advanced Digital Controls – Preset multiple bend angles for fast and repeatable production.

• Integrated Bend Counter – Helps operators track production and maintain consistency.

• Multi-Bar Processing – Process multiple bars simultaneously where capacity allows.

• Bidirectional Bend Table – Forward and reverse rotation provides greater flexibility for complex bends.

• Heavy-Duty Three-Phase Motor – Designed for continuous, high-output operation.

• Foot Pedal Control – Provides convenient and efficient operator control.

• Interlocked Safety Guards & Door Sensors – Safety-focused design for professional workshop environments.

• Industrial-Strength Frame – Built for demanding rebar processing and production applications.

• Multiple Bend Pins & Bushings – Supplied with multiple diameters, with custom sizes available.

• Optional Forming Tools – Ligature/stirrup, spiral and rebar ring forming tools are available.

• European Engineering – Designed and manufactured for demanding professional applications.

• Australian Local Support – RAPIDTOOL provides local parts, servicing and priority support.

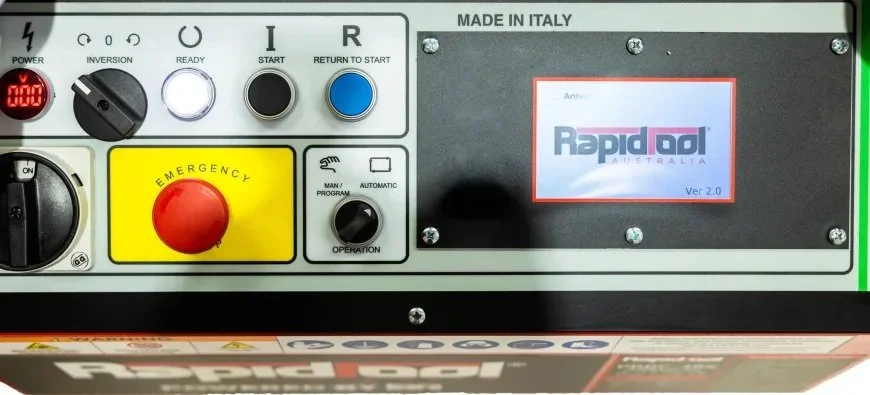

Advanced Digital Rebar Bending Control

The PRBC-36X features an advanced digital control system designed to simplify repetitive bending operations and improve production consistency.

Operators can preset close to 400 bend angles through the integrated digital control panel, making the machine particularly well suited to high-volume rebar fabrication and production environments.

The built-in digital bend counter allows operators to monitor completed bends and maintain better control over production output.

Powerful Rebar Bending & Cutting Performance

The PRBC-36X combines high-capacity bending and cutting in a single industrial machine, helping businesses streamline rebar processing and reduce the need for separate equipment.

Bending Capacity

The PRBC-36X can process rebar from 6mm to 36mm, with multi-bar processing capabilities:

• 36mm – 1 bar

• 28mm – 2 bars

• 22mm – 3 bars

Cutting Capacity

The integrated cutting system handles rebar from 6mm to 30mm:

• 30mm – 1 bar

• 24mm – 2 bars

• 16mm – 3 bars

This combination makes the PRBC-36X a versatile solution for businesses requiring both rebar bending and cutting in high-volume production environments.

Fast & Efficient Multi-Bar Processing

Designed for professional rebar fabrication, the PRBC-36X can process multiple bars simultaneously within its rated capacity.

This helps improve production efficiency and reduce processing time in demanding applications such as precast concrete manufacturing, reinforcement fabrication and construction projects.

Bidirectional Bending Table

The PRBC-36X features a bidirectional bending table, allowing forward and reverse rotation for greater flexibility when producing complex rebar shapes.

This functionality is particularly useful when manufacturing hooks, bends, ligatures, stirrups, spirals and other reinforcement components.

Optional Ligature, Stirrup, Spiral & Rebar Ring Tools

Optional forming accessories allow the PRBC-36X to handle a wider range of specialised rebar production requirements.

Available optional tools include:

• Ligature forming tools

• Stirrup forming tools

• Spiral forming tools

• Rebar ring forming tools

These accessories provide additional flexibility for businesses producing specialised reinforcement shapes and components.

Heavy-Duty Three-Phase Construction

The PRBC-36X is engineered for demanding production environments and features a robust three-phase hybrid drive system designed for continuous operation under load.

With a rated power output of 4kW, the machine is built to deliver reliable performance across demanding rebar bending and cutting applications.

The industrial-strength frame provides a solid platform for high-volume production and professional workshop use.

Safety-Focused Design

Operator safety is incorporated into the PRBC-36X design with features including:

• Interlocked safety guards

• Sensor-activated doors

• Foot pedal control

• Integrated safety protection

These features are designed to help provide a safer and more controlled working environment during rebar processing.

Installation must be carried out by a licensed electrician.

European Engineering. Australian Support.

The PRBC-36X is part of the RAPIDTOOL – ICARO Premium Rebar Machinery range, combining European manufacturing with local Australian support.

RAPIDTOOL is the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery.

Customers benefit from local access to:

• Spare parts

• Professional servicing

• Technical support

• Priority service

• Local product support

Includes

The PRBC-36X includes:

• Foot pedal

• Squaring arm set

• Multiple bend pins and bushings

• Safety guard

• Priority Service from RAPIDTOOL

Optional forming tools are available for ligature/stirrup, spiral and rebar ring production.

Specifications

SpecificationPRBC-36XBrandRAPIDTOOL – ICAROModelPRBC-36XDescriptionRAPIDTOOL PREMIUM 400–415V Heavy Duty 6–36mm Rebar Bender + 6–30mm Rebar CutterPoles4Rated Voltage400–415V 3~Rated Frequency50HzRated Power4kWRated Current9ANumber of Phases3Full Load Motor Speed1400 RPMAverage Bend Cycle Speed10 RPMRated Bending Diameter Range6–36mm (650MPa)Rated Cutting Diameter Range6–30mm (650MPa)Maximum Bending Capacity36mm – 1 Bar / 28mm – 2 Bars / 22mm – 3 BarsMaximum Cutting Capacity30mm – 1 Bar / 24mm – 2 Bars / 16mm – 3 BarsNet Weight560kgMachine Dimensions115cm x 80cm x 85cmIncluded AccessoriesSquaring Arm Set, Pins, Bushings, Foot Pedal & Safety GuardBend Pin/Bushing Diameters25 / 38 / 60 / 80 / 100 / 120 / 150mm150mm BushingCompatible with rebar ≤25mmCustom BushingsAvailableOptional AccessoriesStirrup/Ligature + Spiral/Rebar Ring Forming Tools

Features and specifications are approximate only. Refer to the product datasheet for full details.

Applications

The RAPIDTOOL PRBC-36X is suitable for professional rebar processing applications including:

• Precast concrete production

• Rebar fabrication workshops

• Rebar processing facilities

• Infrastructure projects

• Civil construction

• Commercial construction

• Residential construction

• Reinforcement steel preparation

• High-volume rebar production

Why Choose the RAPIDTOOL PRBC-36X?

The RAPIDTOOL PRBC-36X Heavy Duty Rebar Bender + Cutter combines powerful rebar bending and cutting capabilities with advanced digital control in one production-grade machine.

With 6–36mm bending capacity, 6–30mm cutting capacity, multi-bar processing, bidirectional bending, digital bend programming and an integrated bend counter, the PRBC-36X is designed to help professional operators achieve fast, consistent and repeatable results.

For businesses looking to streamline rebar processing and increase production efficiency, the PRBC-36X provides a versatile solution backed by RAPIDTOOL's Australian parts, servicing and technical support.

Installation must be carried out by a licensed electrician.
