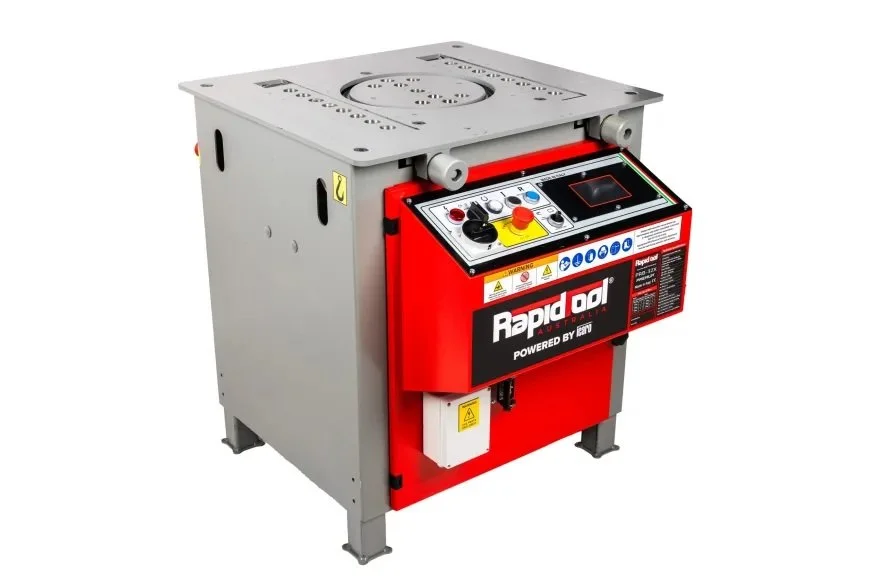

The RAPIDTOOL ICARO PRB-32X Premium Rebar Bender is a heavy-duty, production-grade bending machine engineered for demanding precast concrete, rebar fabrication, reinforcement processing and construction environments.

With a 6–32mm bending capacity, the PRB-32X is designed to deliver fast, clean and accurate bends across a broad range of reinforcing bar sizes. Its multi-bar processing capability makes it an excellent choice for high-volume production environments where speed, consistency and repeatability are essential.

The PRB-32X combines advanced digital bend control, an integrated bend counter and a bidirectional bending table with a powerful 3kW three-phase motor. Operators can preset multiple bend angles and switch between forward and reverse table rotation, providing greater flexibility when producing complex reinforcement shapes.

Optional forming tools are available for stirrups, ligatures, spirals and rebar rings, allowing the PRB-32X to be configured for a wide range of professional reinforcement fabrication applications.

Designed and manufactured in Europe for the Australian and New Zealand market, the PRB-32X combines robust industrial construction, precision engineering and safety-focused features with local RAPIDTOOL parts, servicing and technical support.

RAPIDTOOL is the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, providing local access to spare parts, technical support and servicing.

Key Features & Benefits

• Premium heavy-duty digital rebar bending machine

• 6–32mm bending capacity

• Suitable for rebar up to 650 MPa

• Advanced digital bend control

• Preset multiple bend angles

• Built-in digital bend counter

• Multi-bar processing capability

• Bidirectional bending table

• Fast and accurate bending performance

• Powerful 3kW three-phase motor

• Designed for continuous, high-output operation

• Foot pedal control

• Interlocked safety guards

• Sensor-activated doors

• Industrial-strength frame

• Multiple bend pins and bushings included

• Optional stirrup and ligature forming tools

• Optional spiral and rebar ring forming tools

• European engineering and manufacturing

• Tested in Australia and New Zealand using rebar manufactured to national standards

• Local Australian spare parts and servicing

• Priority local technical support from RAPIDTOOL

6–32mm Rebar Bending Capacity

The PRB-32X is designed to bend reinforcing bar from 6mm up to 32mm, providing a versatile solution for professional rebar fabrication and reinforcement processing.

The machine can process multiple bars simultaneously depending on diameter:

• 32mm – 1 bar

• 24mm – 2 bars

• 18mm – 3 bars

Multi-bar processing can help increase production output when manufacturing repetitive reinforcement components, while the machine's larger 32mm capacity provides the flexibility required for heavier reinforcement applications.

Advanced Digital Bend Control

The PRB-32X features an integrated digital control panel designed to simplify repetitive bending operations and improve production consistency.

Operators can preset close to 400 bend angles, allowing frequently used bending configurations to be programmed for efficient production. The integrated digital bend counter provides convenient tracking of completed bends, helping operators monitor production output.

This digital control system makes the PRB-32X particularly well suited to high-volume rebar fabrication and production environments.

Bidirectional Bending Table

The PRB-32X features a reversible bending table capable of forward and reverse operation.

Bidirectional rotation provides greater flexibility when forming complex shapes and can help simplify bending sequences for demanding reinforcement fabrication applications.

Fast & Efficient Multi-Bar Bending

The PRB-32X is engineered for high-volume production and can process multiple reinforcing bars simultaneously where applicable.

This makes it particularly suitable for:

• Precast concrete production

• Rebar fabrication

• Reinforcement workshops

• Production facilities

• High-volume construction projects

Fast, repeatable bending cycles help operators maintain consistent output while reducing processing time.

Powerful Three-Phase Motor

The PRB-32X is powered by a 3kW three-phase motor designed for continuous operation under load.

With a full-load motor speed of approximately 1,415 RPM and an average bend cycle speed of approximately 10 RPM, the machine provides the power and consistency required for professional rebar bending operations.

Its three-phase hybrid drive technology is designed to deliver reliable performance when processing both single and multiple bars.

Safety-First Design

Operator safety is incorporated into the PRB-32X through a range of protective features, including:

• Interlocked safety guards

• Sensor-activated doors

• Foot pedal control

• Protective machine guarding

These features are designed to support controlled operation and safer workflows in busy rebar processing and fabrication environments.

The PRB-32X must be installed and electrically connected by a licensed electrician. Always follow the manufacturer's installation, operating and safety instructions.

Optional Tools for Stirrups, Spirals & Rebar Rings

The PRB-32X can be configured with optional forming accessories to expand its production capabilities.

Optional tools include:

• Ligature and stirrup forming tools

• Spiral forming tools

• Rebar ring forming tools

These accessories allow businesses to produce a wider variety of reinforcement shapes and specialised components from a single production platform.

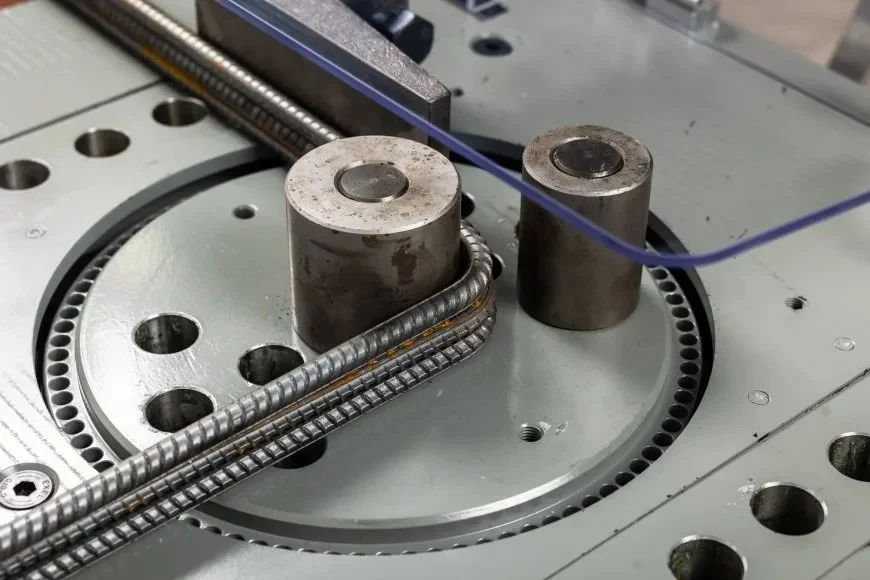

Multiple Bend Pins & Bushings

The PRB-32X is supplied with multiple bend pin and bushing diameters for different reinforcement bending requirements.

Included sizes:

25 / 32 / 50 / 80 / 100mm

Custom diameter bushings may also be available for specialised production requirements.

Industrial Construction

The PRB-32X is engineered for demanding professional workshop and production environments.

With a robust industrial-strength frame and approximately 375kg net weight, the machine provides a stable platform for heavy-duty rebar bending operations.

Its approximately 90 × 75 × 85cm footprint provides a practical balance between production capability and workshop space requirements.

Applications

The RAPIDTOOL ICARO PRB-32X is suitable for:

• Precast concrete production

• Rebar processing facilities

• Rebar fabrication workshops

• Reinforcing steel fabrication

• Stirrup production

• Ligature production

• Hook and bar bending

• Spiral production

• Rebar ring production

• Infrastructure construction

• Civil construction

• Commercial construction

• Residential construction

• High-volume reinforcement processing

RAPIDTOOL – ICARO Partnership

RAPIDTOOL and ICARO combine European engineering and manufacturing with local Australian support.

The PRB-32X has been rigorously tested in Australia and New Zealand using rebar manufactured to applicable national standards.

As the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, RAPIDTOOL provides local access to spare parts, technical support and servicing.

For businesses operating professional rebar fabrication equipment, local parts and service support can help simplify ongoing maintenance and minimise potential downtime.

What's Included

• 1 × RAPIDTOOL ICARO PRB-32X Rebar Bender

• Foot pedal

• Squaring arm set

• Multiple bend pins and bushings

• Safety guard

• Priority local service and support

• Australian parts and servicing support

Optional accessories:

• Stirrup/Ligature forming tools

• Spiral forming tools

• Rebar ring forming tools

Product Specifications

SpecificationDetailsBrandRAPIDTOOL – ICAROModelPRB-32XDescriptionPremium 400–415V Heavy-Duty 6–32mm Rebar BenderPoles4Rated Voltage400–415V 3~Rated Frequency50HzRated Power3kWRated Current7.1ANumber of Phases3Full Load Motor Speed1,415 RPMAverage Bend Cycle Speed10 RPMRated Bending Diameter6–32mm (650 MPa)Maximum Bar Capacity32mm – 1 bar / 24mm – 2 bars / 18mm – 3 barsNet Weight375kgDimensions (L × W × H)90 × 75 × 85cmBend Pin/Bushing Diameters25 / 32 / 50 / 80 / 100mmStandard AccessoriesSquaring arm set, pins, bushings, foot pedal and safety guardOptional AccessoriesStirrup/Ligature + Spiral/Rebar Ring Forming Tools

Features and specifications are approximate and subject to change. Refer to the current manufacturer datasheet for complete technical information.

Installation

Installation and electrical connection must be carried out by a licensed electrician. Ensure the machine is installed and operated in accordance with applicable Australian electrical and workplace safety requirements and the manufacturer's instructions.
