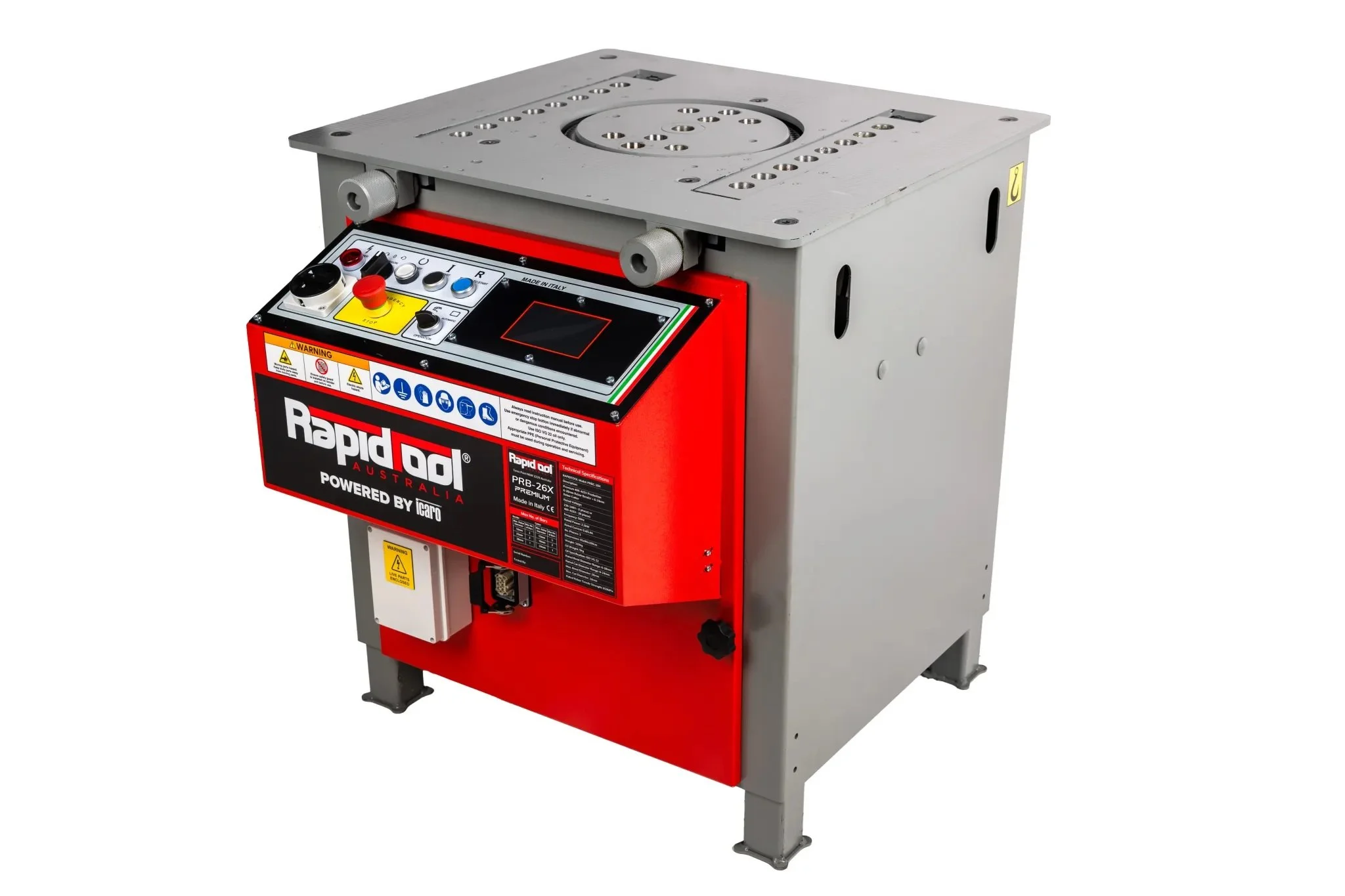

The RAPIDTOOL ICARO PRB-26X Premium Rebar Bender is a heavy-duty, production-grade rebar bending machine engineered for demanding precast concrete, rebar fabrication, reinforcement processing and construction environments.

With a versatile 6–26mm bending capacity, the PRB-26X is designed to produce fast, clean and accurate bends across a wide range of reinforcing bar sizes. Its multi-bar processing capability makes it particularly suitable for high-volume production environments where efficiency, repeatability and precision are essential.

The PRB-26X combines advanced digital bend control, a built-in bend counter and bidirectional bending capability with a powerful 2.2kW three-phase motor. Operators can preset multiple bend angles, monitor production and switch between forward and reverse table rotation for greater flexibility when producing complex reinforcement shapes.

Optional forming tools are available for stirrups, ligatures, spirals and rebar rings, allowing the PRB-26X to adapt to a wide variety of reinforcement fabrication requirements.

Designed and manufactured in Europe for the Australian and New Zealand market, the PRB-26X combines robust industrial construction with safety-focused features and local RAPIDTOOL parts, servicing and technical support.

RAPIDTOOL is the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, providing local access to spare parts, technical support and servicing.

Key Features & Benefits

• Premium heavy-duty rebar bending machine

• 6–26mm bending capacity

• Suitable for rebar up to 650 MPa

• Advanced digital bend control

• Preset multiple bend angles

• Built-in digital bend counter

• Multi-bar processing capability

• Bidirectional bending table

• Fast and accurate bending performance

• Powerful 2.2kW three-phase motor

• Designed for continuous, high-output operation

• Foot pedal control

• Interlocked safety guards

• Sensor-activated doors

• Industrial-strength frame

• Multiple bend pins and bushings included

• Optional stirrup and ligature forming tools

• Optional spiral and rebar ring forming tools

• European engineering and manufacturing

• Tested in Australia and New Zealand using rebar manufactured to national standards

• Local Australian spare parts and servicing

• Priority local technical support from RAPIDTOOL

6–26mm Rebar Bending Capacity

The PRB-26X is designed to bend reinforcing bar from 6mm up to 26mm, providing a versatile solution for professional rebar fabrication and reinforcement processing.

Its multi-bar processing capability allows operators to bend multiple bars simultaneously, depending on bar diameter:

• 26mm – 1 bar

• 20mm – 2 bars

• 16mm – 3 bars

This multi-bar capability can significantly improve production efficiency when manufacturing repetitive reinforcement components.

Advanced Digital Bend Control

The PRB-26X features an integrated digital control panel designed to streamline repetitive bending operations.

Operators can preset close to 400 bend angles, making it easier to reproduce commonly required bends across production runs. The integrated digital bend counter helps track completed bends and provides greater visibility over production output.

Digital programming makes the PRB-26X particularly suited to high-volume rebar fabrication environments where consistency and repeatability are important.

Bidirectional Bending Table

The PRB-26X features a bidirectional bending table, allowing forward and reverse operation.

This reversible bending capability provides greater flexibility when forming complex reinforcement shapes and can help simplify bending sequences for demanding fabrication applications.

Fast & Efficient Multi-Bar Bending

Designed for high-volume production, the PRB-26X can process multiple reinforcing bars simultaneously where applicable.

This allows fabrication workshops, precast manufacturers and reinforcement processors to increase productivity while maintaining fast and repeatable bending cycles.

Heavy-Duty Three-Phase Motor

The PRB-26X is powered by a 2.2kW three-phase motor designed for continuous operation under load.

With a full-load motor speed of approximately 1,420 RPM and an average bend cycle speed of approximately 10 RPM, the machine is engineered to deliver consistent performance in demanding production environments.

Its heavy-duty three-phase drive system and industrial construction provide the durability required for professional rebar processing.

Safety-First Design

Operator safety is incorporated into the PRB-26X design through:

• Interlocked safety guards

• Sensor-activated doors

• Foot pedal control

• Protective machine guarding

These features are designed to provide controlled operation and help support safer workflows in busy rebar fabrication and processing environments.

The PRB-26X must be installed and electrically connected by a licensed electrician. Always follow the manufacturer's installation, operating and safety instructions.

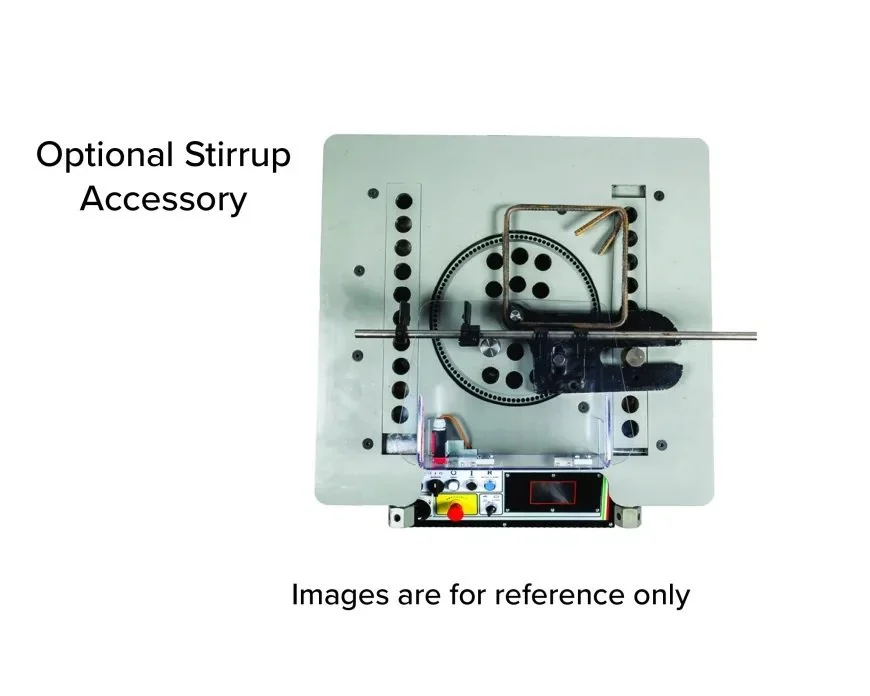

Optional Tools for Stirrups, Spirals & Rebar Rings

The PRB-26X can be configured with optional forming accessories to expand its production capabilities.

Optional tools include:

• Ligature and stirrup forming tools

• Spiral forming tools

• Rebar ring forming tools

These accessories provide additional flexibility for businesses producing specialised reinforcement components and complex rebar shapes.

Multiple Bend Pins & Bushings

The PRB-26X is supplied with multiple bend pin and bushing diameters to accommodate different reinforcement bending requirements.

Included sizes:

25 / 32 / 50 / 60 / 80 / 100mm

Custom diameter bushings may also be available to suit specific production requirements.

Industrial Construction

The PRB-26X is engineered for demanding workshop and production environments.

With an industrial-strength frame and approximately 260kg net weight, the machine provides a stable platform for professional rebar bending operations while maintaining a relatively compact footprint of approximately 90 × 75 × 85cm.

Applications

The RAPIDTOOL ICARO PRB-26X is suitable for:

• Precast concrete production

• Rebar processing facilities

• Rebar fabrication workshops

• Reinforcing steel fabrication

• Stirrup production

• Ligature production

• Hook and bar bending

• Spiral production

• Rebar ring production

• Infrastructure construction

• Civil construction

• Commercial construction

• Residential construction

• High-volume reinforcement processing

RAPIDTOOL – ICARO Partnership

RAPIDTOOL and ICARO combine European engineering and manufacturing with local Australian support.

The PRB-26X has been rigorously tested in Australia and New Zealand using rebar manufactured to applicable national standards.

As the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, RAPIDTOOL provides local access to spare parts, technical support and servicing.

For businesses operating professional rebar fabrication equipment, local parts and service support can help simplify ongoing maintenance and minimise potential downtime.

What's Included

• 1 × RAPIDTOOL ICARO PRB-26X Rebar Bender

• Foot pedal

• Squaring arm set

• Multiple bend pins and bushings

• Safety guard

• Priority local service and support

• Australian parts and servicing support

Optional accessories:

• Stirrup/Ligature forming tools

• Spiral forming tools

• Rebar ring forming tools

Product Specifications

SpecificationDetailsBrandRAPIDTOOL – ICAROModelPRB-26XDescriptionPremium 400–415V Heavy-Duty 6–26mm Rebar BenderPoles4Rated Voltage400–415V 3~Rated Frequency50HzRated Power2.2kWRated Current5.4ANumber of Phases3Full Load Motor Speed1,420 RPMAverage Bend Cycle Speed10 RPMRated Bending Diameter6–26mm (650 MPa)Maximum Bar Capacity26mm – 1 bar / 20mm – 2 bars / 16mm – 3 barsNet Weight260kgDimensions (L × W × H)90 × 75 × 85cmBend Pin/Bushing Diameters25 / 32 / 50 / 60 / 80 / 100mmStandard AccessoriesSquaring arm set, pins, bushings, foot pedal and safety guardOptional AccessoriesStirrup/Ligature + Spiral/Rebar Ring Forming Tools

Features and specifications are approximate and subject to change. Refer to the current manufacturer datasheet for complete technical information.

Installation

Installation and electrical connection must be carried out by a licensed electrician. Ensure the machine is installed and operated in accordance with applicable Australian electrical and workplace safety requirements and the manufacturer's instructions.
