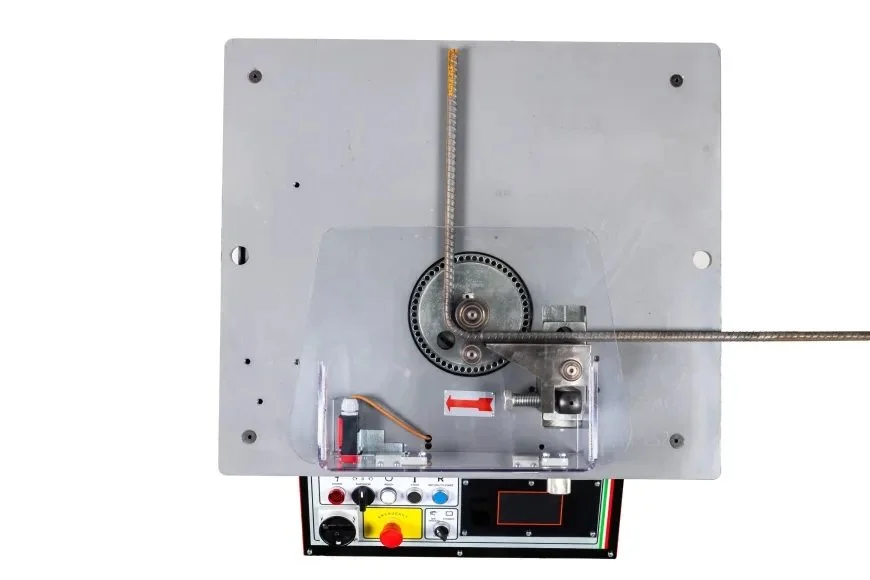

The RAPIDTOOL ICARO PRB-16X Premium Stirrup & Rebar Bender is a heavy-duty, production-grade bending machine designed for precast concrete, rebar fabrication and reinforcement processing.

With a 6–16mm bending capacity, the PRB-16X is purpose-built for producing accurate bends in smaller-diameter reinforcing bar, making it particularly suitable for stirrups, ligatures, hooks and general rebar fabrication.

The machine combines an advanced digital bend control system, multi-bar processing capability and a powerful 1.5kW three-phase motor to deliver fast, repeatable bending performance in high-volume production environments.

Operators can digitally preset multiple bend angles and monitor production using the integrated bend counter. The supplied stirrup and ligature forming tool further expands the machine's capabilities, allowing efficient production of reinforcement shapes.

Designed and manufactured in Europe for the Australian and New Zealand market, the PRB-16X combines robust industrial construction with safety-focused features and local RAPIDTOOL parts, servicing and technical support.

RAPIDTOOL is the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, providing local access to spare parts, technical support and servicing.

Key Features & Benefits

• Premium heavy-duty stirrup and rebar bending machine

• 6–16mm bending capacity

• Suitable for rebar up to 650 MPa

• Advanced digital bend control

• Preset multiple bend angles

• Built-in digital bend counter

• Multi-bar processing capability

• Fast and accurate bending performance

• Powerful 1.5kW three-phase motor

• Designed for continuous, high-output operation

• Foot pedal control

• Interlocked safety guards

• Sensor-activated doors

• Industrial-strength frame

• Supplied with stirrup/ligature forming tool

• Multiple bend pins and bushings included

• European engineering and manufacturing

• Tested in Australia and New Zealand using rebar manufactured to national standards

• Local Australian spare parts and servicing

• Priority local technical support from RAPIDTOOL

6–16mm Rebar Bending Capacity

The PRB-16X is designed specifically for bending reinforcing bar from 6mm to 16mm, making it an ideal production machine for smaller-diameter reinforcement applications.

The machine's multi-bar processing capability allows operators to process multiple bars simultaneously, depending on bar diameter:

• 16mm – 1 bar

• 12mm – 2 bars

• 10mm – 3 bars

Multi-bar operation can help increase productivity in workshops where large quantities of stirrups, ligatures and reinforcement components need to be produced efficiently.

Advanced Digital Bend Control

The PRB-16X features an integrated digital control panel designed to simplify repetitive bending operations.

Operators can preset close to 400 bend angles, allowing frequently used bending configurations to be programmed for efficient production. The integrated digital bend counter provides a convenient way to track completed bends and maintain production consistency.

This combination of digital programming and automated counting makes the PRB-16X particularly suited to high-volume rebar fabrication workflows.

Stirrup & Ligature Production

The PRB-16X is supplied with a dedicated stirrup and ligature forming tool, making it an excellent choice for reinforcement fabrication businesses producing smaller-diameter reinforcement components.

The forming guide features adjustable length flanges to help operators efficiently produce consistent stirrups and ligatures for a range of applications.

Fast & Efficient Multi-Bar Bending

The PRB-16X is designed to improve productivity by allowing multiple reinforcing bars to be processed simultaneously where applicable.

This makes the machine well suited to precast production, rebar fabrication and reinforcement workshops requiring fast and repeatable bending with minimal downtime.

Heavy-Duty Three-Phase Motor

The PRB-16X is powered by a 1.5kW three-phase motor designed for continuous operation under load.

With a full-load motor speed of approximately 1,415 RPM and an average bend cycle speed of approximately 20 RPM, the machine delivers efficient bending performance for demanding production environments.

Safety-First Design

Operator safety is incorporated into the PRB-16X through several protective features, including:

• Interlocked safety guards

• Sensor-activated doors

• Foot pedal control

• Protective machine guarding

These features are designed to help provide controlled operation while supporting safer workflows in busy rebar processing and fabrication environments.

The machine must be installed and electrically connected by a licensed electrician. Always follow the manufacturer's installation, operating and safety instructions.

Multiple Bend Pins & Bushings

The PRB-16X is supplied with multiple bend pin and bushing diameters to accommodate different reinforcement bending requirements.

Included diameters:

16 / 25 / 32 / 50 / 60mm

The 60mm bushing is compatible with rebar up to 12mm.

Industrial Construction

Despite its compact footprint, the PRB-16X is designed for professional production environments. Its industrial-strength construction provides durability for demanding workshop use, while its approximately 250kg net weight provides a stable platform during operation.

The machine dimensions of approximately 90 × 80 × 85cm make it suitable for workshops where efficient use of available floor space is important.

Applications

The RAPIDTOOL ICARO PRB-16X is suitable for:

• Precast concrete production

• Rebar processing facilities

• Rebar fabrication workshops

• Stirrup production

• Ligature production

• Reinforcing steel fabrication

• Infrastructure construction

• Civil construction

• Commercial construction

• Residential construction

• Concrete reinforcement preparation

• High-volume small-diameter rebar bending

RAPIDTOOL – ICARO Partnership

RAPIDTOOL and ICARO combine European engineering and manufacturing with local Australian support.

The PRB-16X has been rigorously tested in Australia and New Zealand using rebar manufactured to applicable national standards.

As the exclusive Australian, New Zealand and Pacific Islands dealer and authorised service agent for ICARO rebar machinery, RAPIDTOOL provides local access to spare parts, technical support and servicing.

For businesses operating professional rebar fabrication equipment, local parts and service support can help simplify ongoing maintenance and minimise potential downtime.

What's Included

• 1 × RAPIDTOOL ICARO PRB-16X Stirrup & Rebar Bender

• Foot pedal

• Squaring arm set

• Multiple bend pins and bushings

• Stirrup/Ligature forming tool

• Safety guard

• Priority local service and support

• Australian parts and servicing support

Product Specifications

SpecificationDetailsBrandRAPIDTOOL – ICAROModelPRB-16XDescriptionPremium 400–415V Heavy-Duty 6–16mm Stirrup + Rebar BenderPoles4Rated Voltage400–415V 3~Rated Frequency50HzRated Power1.5kWRated Current3.9ANumber of Phases3Full Load Motor Speed1,415 RPMAverage Bend Cycle Speed20 RPMRated Bending Diameter6–16mm (650 MPa)Maximum Bar Capacity16mm – 1 bar / 12mm – 2 bars / 10mm – 3 barsNet Weight250kgDimensions (L × W × H)90 × 80 × 85cmBend Pin/Bushing Diameters16 / 25 / 32 / 50 / 60mm*Standard AccessoriesSquaring arm set, pins, bushings, stirrup/ligature forming tool, foot pedal and safety guard

The 60mm bushing is compatible with rebar up to 12mm. Custom configurations may be available.

Features and specifications are approximate and subject to change. Refer to the current manufacturer datasheet for complete technical information.

Installation

Installation and electrical connection must be carried out by a licensed electrician. Ensure the machine is installed and operated in accordance with applicable Australian electrical and workplace safety requirements and the manufacturer's instructions.
