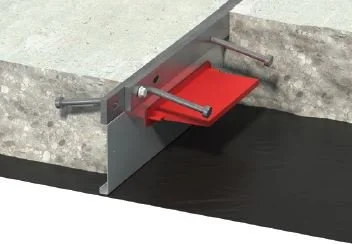

Isedio ArmourJoint is a leave-in-place formwork, load transfer and edge protection joint system suitable for heavy duty industrial concrete floors such as warehouses, industrial factories and commercial developments.

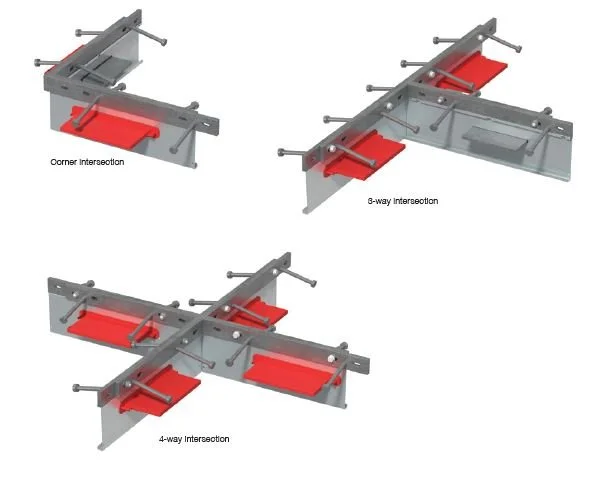

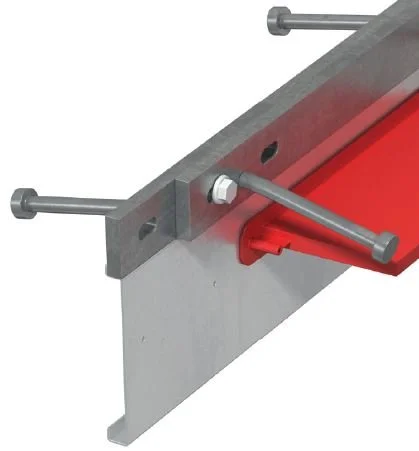

The joint system comprises two top strips, a divider plate, load transfer plate dowels and sleeves. The divider plate height fits the slab depth and, to ensure the plate dowel is always located at the mid-height of the slab, is manufactured to order.

The Isedio Armourjoint is designed such that, once cast, the two slab panels either side of the joint begin to shrink independently. One panel includes the dowel sleeve and one of the top strips. The other top strip, the divider plate and the dowel are included in the other part of the slab. The dowel bridges the joint and is embedded in both slab panels.

Available in black, galvanised and stainless steel, with 6mm, 8mm and 12mm dowel options, the Isedio Armourjoint covers all bases when it comes to concrete joints and edge protection.

Click here to check out our full range of slab jointing products!

Safari Group is Perth & Western Australia’s only dedicated distribution outlet for the Isedio range of Armourjoint and other slab jointing systems, talk to our sales staff today to learn how we can help protect your concrete slab on your next project.
