Lightweight, Reusable Formwork for Walls, Foundations, Beams & Columns

Geopanel is a lightweight, modular formwork system made from recycled plastic, designed to make concrete construction faster, safer and more efficient. Suitable for forming walls, foundations, beams, columns and other reinforced-concrete structures, Geopanel combines durable performance with easy manual handling and repeated reuse.

Introduced in 2005, Geopanel was developed to provide a more efficient alternative to traditional formwork by helping construction projects reduce material waste, labour requirements, equipment use and logistics costs.

With integrated locking handles and a maximum panel weight of just 11 kg, Geopanel can be assembled, moved and dismantled manually, reducing reliance on cranes and heavy lifting equipment. This makes it particularly useful for residential construction, commercial and industrial projects, infrastructure work, renovations and difficult-to-access sites.

Flexible Modular Formwork for Almost Any Concrete Structure

Geopanel features a 60 cm panel height, with a standard 120 cm full panel width and smaller panel widths of 20, 25, 30, 40 and 60 cm. This modular range allows contractors to create flexible formwork configurations for a wide variety of structural applications.

Geopanel can be used for:

• Concrete walls and shear walls

• Foundations and foundation beams

• Square, rectangular, large and elliptical columns

• Stairwells and elevator shafts

• Concrete houses and residential buildings

• Reinforced concrete pools

• Bunkers and specialist structures

• Lintels and curtain walls

• Reconstruction and infrastructure projects

• Projects in remote or difficult-to-access locations

From smaller residential builds to large commercial and industrial developments, Geopanel provides a versatile formwork solution that can be adapted to different project requirements.

Why Choose Geopanel Formwork?

Lightweight and Crane-Free Installation

With individual panels weighing up to 11 kg, Geopanel is designed for manual handling. Panels can be transported, positioned and assembled by hand, helping reduce the need for cranes and heavy lifting equipment.

This can be particularly valuable on congested construction sites, restricted-access projects, basements, tunnels, elevated structures and remote locations.

Fast and Secure Panel Assembly

Geopanel incorporates integrated patented nylon locking handles that allow panels to be connected quickly and securely. The locking system simplifies installation and dismantling while helping contractors save time on site.

Modular and Versatile

The range of panel sizes makes Geopanel highly adaptable. Panels can be combined in different configurations to form a wide variety of concrete structures, providing contractors with a flexible system for both standard and complex construction requirements.

Easy Concrete Release and Cleaning

The smooth recycled-plastic surface helps prevent concrete from adhering to the panels. After use, Geopanel can be quickly cleaned with water, reducing the need for detergents or release agents and simplifying preparation for the next concrete pour.

Designed for Repeated Reuse

Geopanel is designed to be reused more than 100 times, helping reduce formwork waste and the ongoing cost of replacement materials. Its durable construction and low-maintenance surface make it suitable for repeated use across multiple concrete pours and projects.

High Structural Resistance

Geopanel provides structural resistance of up to 60 kN/m², making it suitable for a broad range of reinforced-concrete construction applications when used in accordance with the manufacturer's specifications and project requirements.

Reduced Transport, Storage and Logistics Requirements

The lightweight, modular design makes Geopanel easier to transport, move and store than heavier traditional formwork systems. Reduced weight and manual handling can help simplify site logistics and reduce the equipment required for installation.

A More Efficient Formwork Solution

Geopanel combines recycled plastic construction, lightweight manual handling, modular design and repeated reuse to provide a practical solution for modern concrete construction.

By reducing the need for heavy equipment, minimising formwork waste and simplifying cleaning and handling, Geopanel can help contractors improve productivity while supporting more resource-efficient construction practices.

Geopanel Applications

Concrete House Construction

Create efficient formwork for reinforced-concrete residential structures and custom concrete homes.

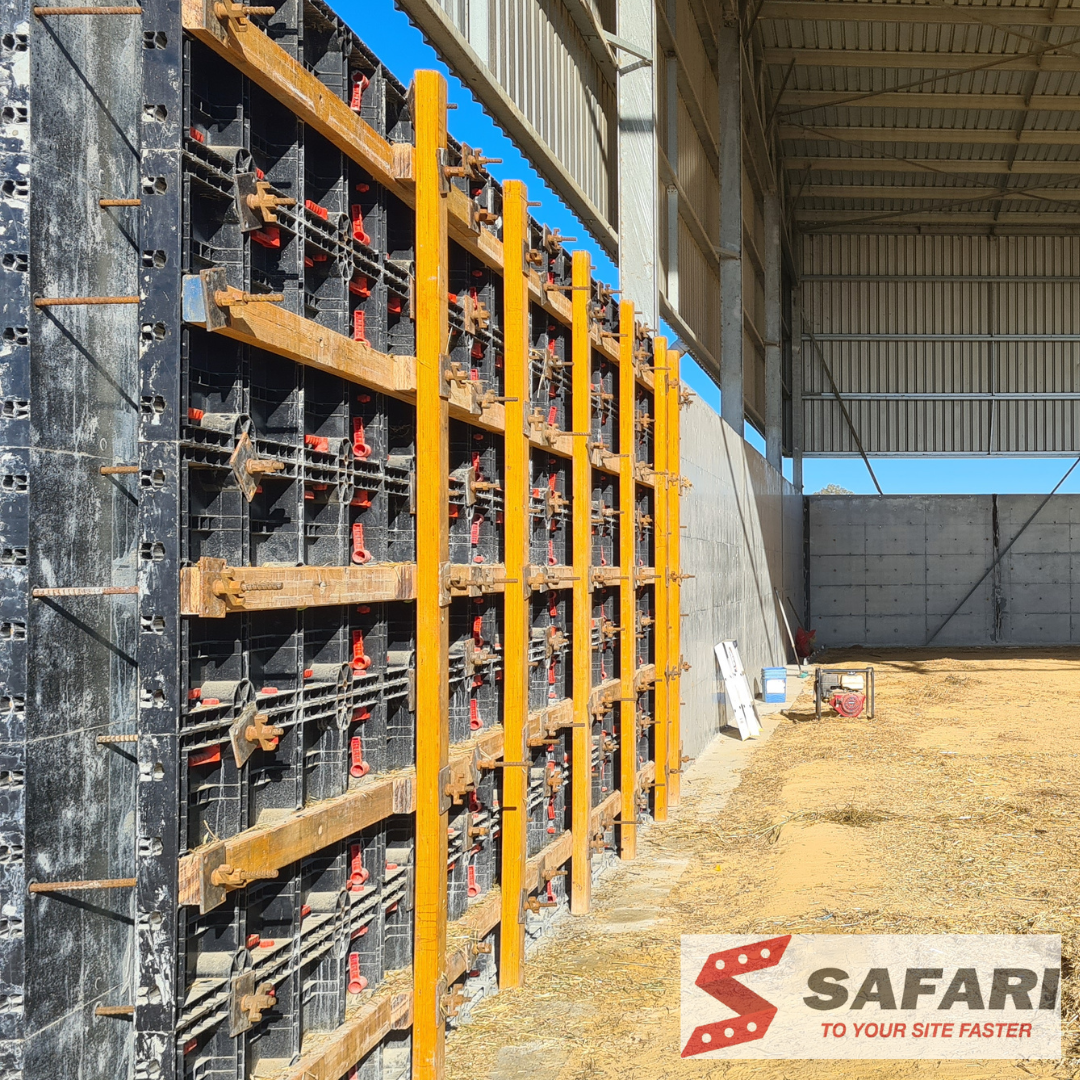

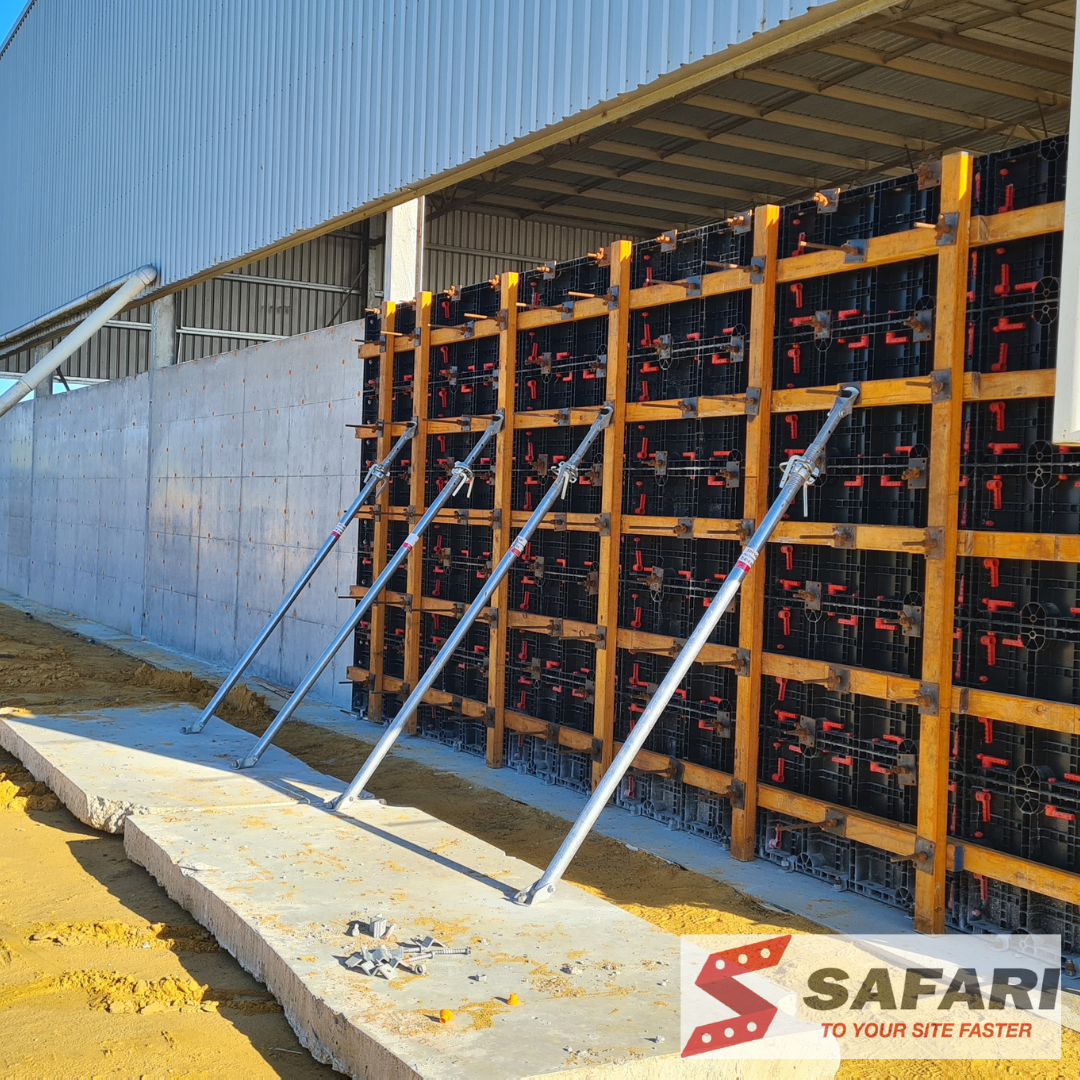

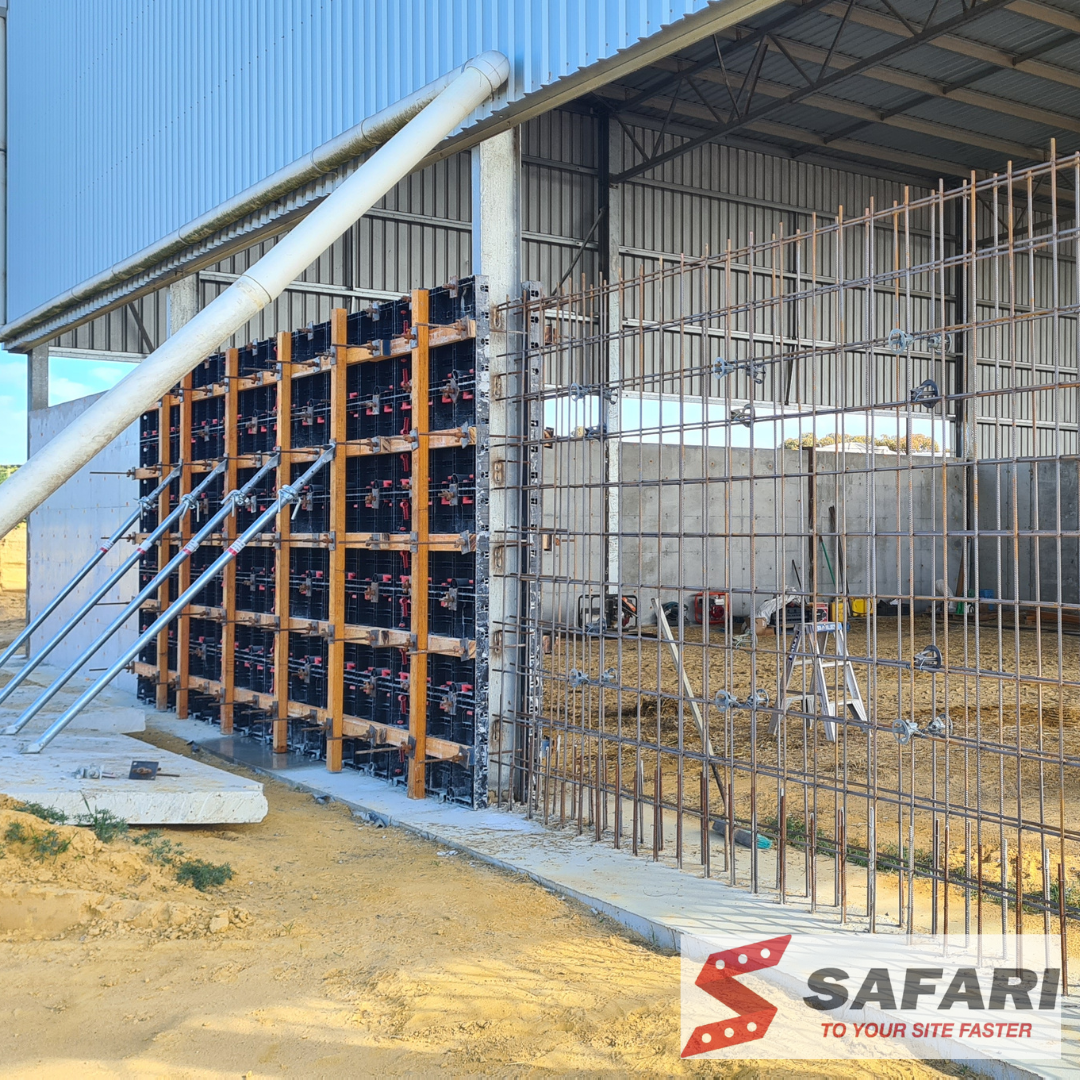

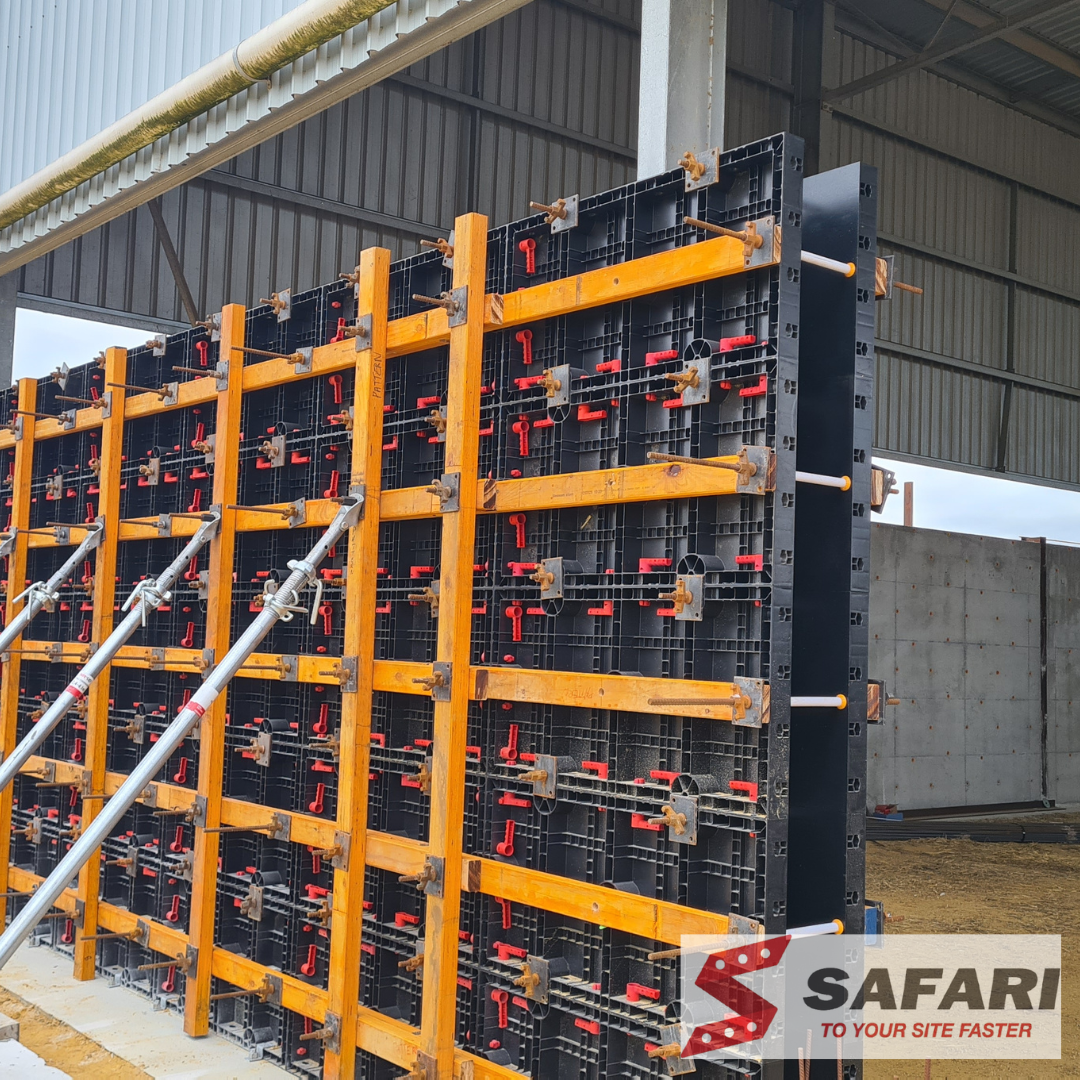

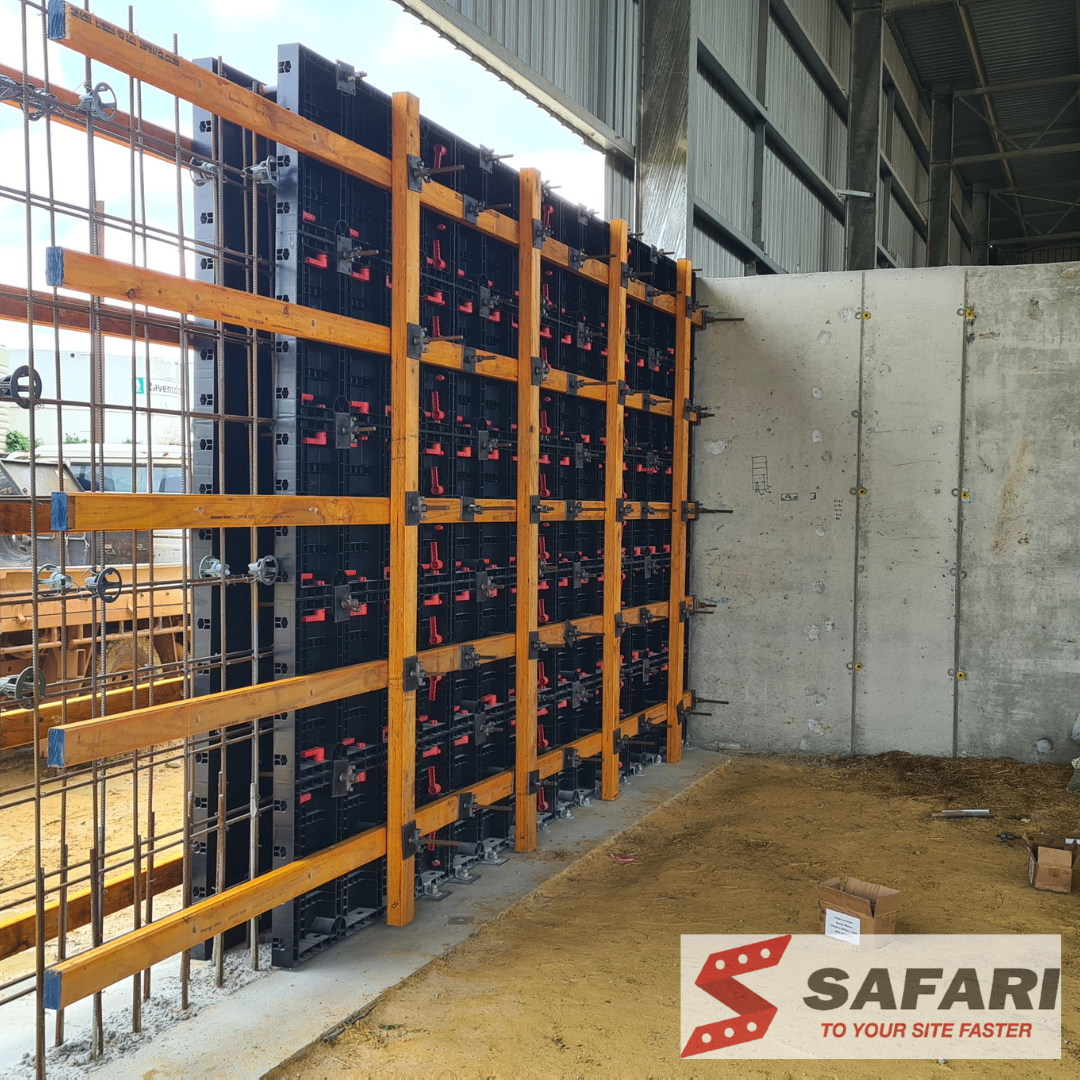

Wall & Shear Wall Formwork

Build straight concrete walls and reinforced shear walls using a flexible modular panel configuration.

Column Formwork

Geopanel can be configured for square, rectangular, large and elliptical columns, providing flexibility for different structural designs.

Foundation Formwork

Use Geopanel for foundations and foundation beams where lightweight, manually handled formwork can simplify site installation.

Pools & Specialist Structures

Geopanel is suitable for reinforced-concrete pools, bunkers and other specialist concrete structures.

Stairwells & Elevator Shafts

Its modular configuration makes Geopanel suitable for forming stairwells, elevator shafts and other vertical structures.

Reconstruction & Difficult-Access Projects

Because the panels can be manually handled, Geopanel is particularly suited to projects where cranes or heavy machinery are difficult to use, including tunnels, basements, historic areas and remote infrastructure sites.

Geopanel Solutions

Explore Geopanel solutions for:

• Concrete House Construction

• Elliptical Column Construction

• Large Column Construction

• Reinforced Concrete Pool Construction

• Bunker Construction

• Geopanel Art Stone Textured Panels

• Geopanel Integration

• Geopanel Wall Construction

• Geosky Slab Supporting Decks

• Lintel and Curtain Wall Construction

• Foundation Beam Construction

• Shear Wall Construction

• Stairwell and Elevator Shaft Construction

• Square and Rectangular Column Construction
