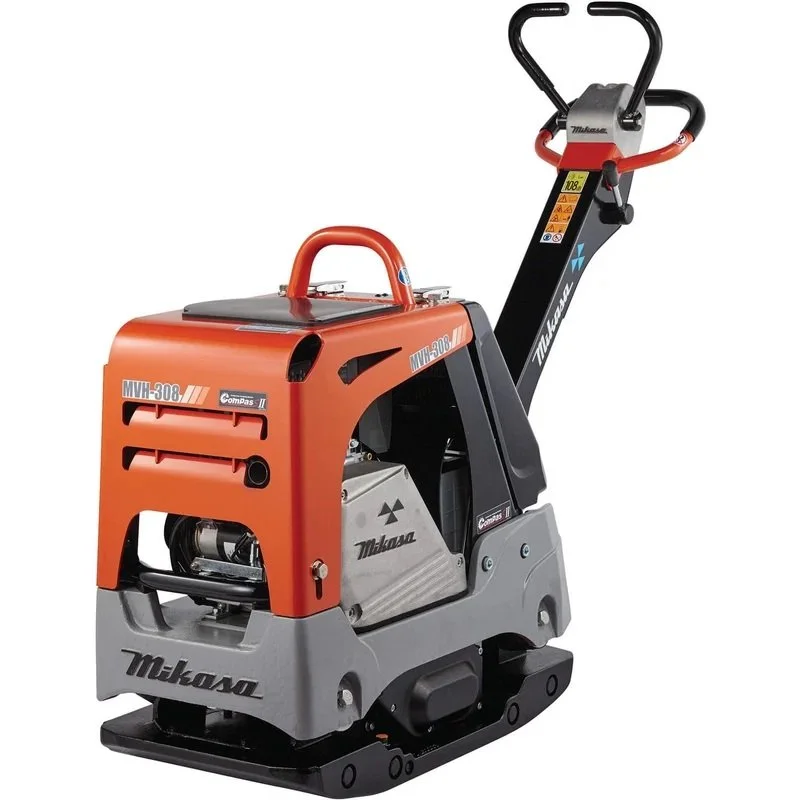

The Mikasa MVH-308D Reversible Plate Compactor is a heavy-duty, high-production compaction machine designed for demanding civil construction, drainage, trenching and earthworks applications.

Powered by a reliable 6.7 HP Yanmar L70N diesel engine and delivering up to 45 kN of centrifugal force, the MVH-308D provides powerful and efficient compaction across a range of soil and aggregate conditions.

At 341 kg operating weight, this reversible plate compactor is built for contractors who need serious compaction performance on demanding job sites.

Heavy-Duty Compaction Performance

The Mikasa MVH-308D combines high centrifugal force, substantial operating weight and a large base plate to deliver efficient compaction and high production rates.

Its reversible operation allows operators to move the machine forward and backward without manually turning the unit around, making it particularly useful in trenches, confined areas and larger civil construction projects.

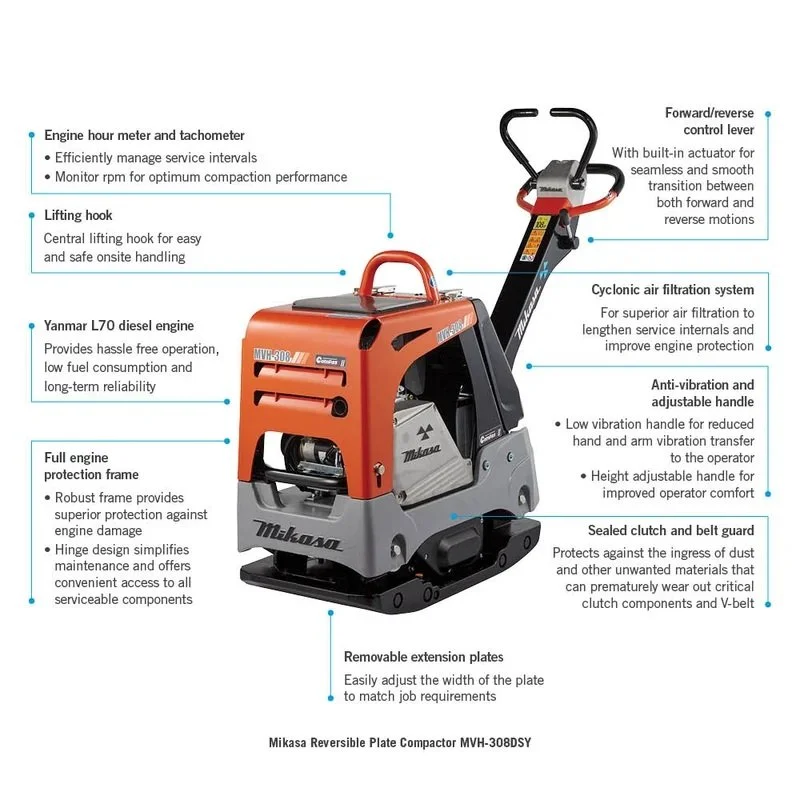

Key Features

• 341 kg operating weight for powerful compaction performance

• 6.7 HP Yanmar L70N diesel engine for dependable job-site power

• 45 kN maximum centrifugal force for high-performance compaction

• 4,400 VPM vibration frequency for efficient material consolidation

• Hydraulic forward and reverse control for smooth directional changes

• Heavy-duty protective frame helps protect the engine and components

• Built-in lifting hook for easier loading, unloading and transportation

• Up to 35% gradeability for working on sloped surfaces

• Optional extension plates increase the working width to 595 mm

Product Specifications

SpecificationDetailsModelMikasa MVH-308DMachine TypeReversible Plate CompactorOperating Weight341 kgWeight with Extension Plates361 kgEngineYanmar L70N DieselEngine Power6.7 HPBase Plate Size445 x 860 mmBase Plate with Extensions595 x 860 mmMaximum Centrifugal Force45 kNVibration Frequency4,400 VPMMaximum Travel Speed27 m/minMaximum GradeabilityUp to 35%

Hydraulic Reversible Control

The MVH-308D features fully hydraulic direction control, allowing operators to smoothly switch between forward and reverse travel.

This makes the machine particularly practical when compacting trenches, narrow work areas and confined construction zones, where manoeuvrability is essential.

Built for Demanding Construction Sites

The robust frame provides protection for the engine while the integrated lifting hook makes the machine easier to handle during transportation and setup.

With its combination of high centrifugal force, heavy operating weight and diesel power, the Mikasa MVH-308D is suited to demanding professional applications where efficient soil compaction is essential.

Ideal Applications

The Mikasa MVH-308D is suitable for compacting a wide range of materials, including:

• Sand

• Gravel

• Cohesive soils

• Road base

• Asphalt

• Trench backfill

• Drainage works

• Civil construction projects

• Road and pavement preparation

• Foundation and earthworks

• Large-scale landscaping and site preparation

Why Choose the Mikasa MVH-308D?

When your project requires heavy-duty reversible soil compaction, the Mikasa MVH-308D delivers the weight, power and centrifugal force needed to get the job done efficiently.

The combination of a 6.7 HP Yanmar diesel engine, 45 kN centrifugal force, hydraulic reversible drive and 341 kg operating weight makes it a strong choice for professional contractors working across civil, drainage, roadworks and construction applications.

Order the Mikasa MVH-308D Reversible Plate Compactor today for high-production compaction performance on demanding job sites.
