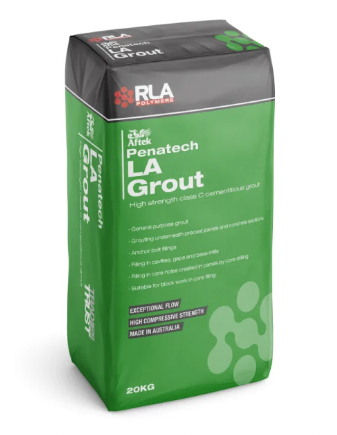

High-Performance, High-Flow Class C Cementitious Micro Concrete Grout

Aftek Penatech LA is a high-performance, high-flow cementitious micro-concrete grout designed for large-volume, deep-pour and precision grouting applications. Its Class C formulation is suitable for applications requiring excellent flow, high placement thickness and reliable support beneath heavily loaded structural and mechanical components.

With a single-application thickness ranging from 10 mm to 800 mm, Penatech LA provides a versatile solution for demanding grouting projects where conventional grout may not be suitable for the required depth or placement conditions.

Its dual-expansion technology compensates for shrinkage in both the plastic and hardened states, while its excellent flow retention supports placement across large or deep sections. Supplied as a pre-mixed, ready-to-use dry product, Penatech LA requires only the addition of water before application.

Key Features and Benefits

• Class C cementitious grout: Designed for high-performance, high-thickness grouting applications.

• 10–800 mm application thickness: Suitable for large or deep pours in a single application, subject to project conditions and product instructions.

• Dual expansion: Helps compensate for shrinkage in both the plastic and hardened states.

• Excellent flow retention: Supports placement in large-volume and deep-pour applications.

• Pre-mixed and ready to use: Requires only the addition of water.

• Adjustable consistency: Can be mixed to a flowable or fluid consistency as required by the application and product instructions.

• Non-metallic formulation: Contains no metallic content that could cause iron-related staining.

• Heavy-duty support: Suitable for grouting applications involving substantial loads, vibration and dynamic operating conditions.

Recommended Applications

Penatech LA is designed for demanding cementitious grouting applications where high flow and substantial placement thickness are required.

Recommended applications include:

• Heavy-duty support beneath machine baseplates.

• Bridge bearing grouting.

• Crane rail grouting.

• Anchoring bolts, bars and fittings.

• Structural underpinning applications.

• Precision grouting beneath equipment and structural components.

• Large-volume and deep-pour cementitious grouting.

• Applications subject to continuous vibration and dynamic loads.

High-Flow Grouting for Large and Deep Applications

Penatech LA combines a high-flow micro-concrete formulation with a broad application thickness range to support demanding construction, structural and industrial installation requirements.

Its flow characteristics help facilitate placement in deeper sections and larger grouting areas, while dual expansion technology helps compensate for shrinkage as the material transitions from its plastic state to its hardened state.

For installations involving heavy machinery, bridge bearings, crane rails or other load-bearing components, select the appropriate grout consistency, preparation method and installation procedure in accordance with the current product documentation and project specifications.

Application and Technical Information

Product type: High-performance cementitious micro-concrete grout

Classification: Class C

Application thickness: 10–800 mm in a single application

Mixing: Add water in accordance with the manufacturer's current instructions

Consistency: Flowable or fluid, as appropriate for the application

Key technology: Dual expansion to compensate for shrinkage in the plastic and hardened states

Always consult the current Penatech LA Technical Data Sheet for mixing water requirements, substrate preparation, placement, curing, temperature limitations and other installation requirements.

Need a High-Flow Grout for Your Project?

Whether you are grouting heavy machinery foundations, bridge bearings, crane rails or deep structural sections, Aftek Penatech LA offers a high-flow cementitious solution for demanding grouting applications.

Contact our team for product information, technical documentation and assistance determining the suitability of Penatech LA for your project.

Enquire today at Safari in Canning Vale about Aftek Penatech LA.
