High Early Strength, Rapid Setting Cementitious Structural Grout

Mapefill HES is a high early strength, rapid-setting, flowable and shrinkage-compensated cementitious structural grout designed for anchoring, grouting and concrete repair applications where rapid initial setting and fast strength gain are required.

Mapefill HES achieves 25 MPa compressive strength in just 2 hours, making it an ideal solution for projects where a rapid return to service is critical.

Its highly fluid consistency allows it to be used for pour depths from 10 mm to 200 mm, providing versatility across a wide range of structural grouting and concrete repair applications.

Available for Pickup & Delivery in Perth & Throughout Western Australia

We have Mapefill HES available for pickup and delivery across Perth and throughout Western Australia.

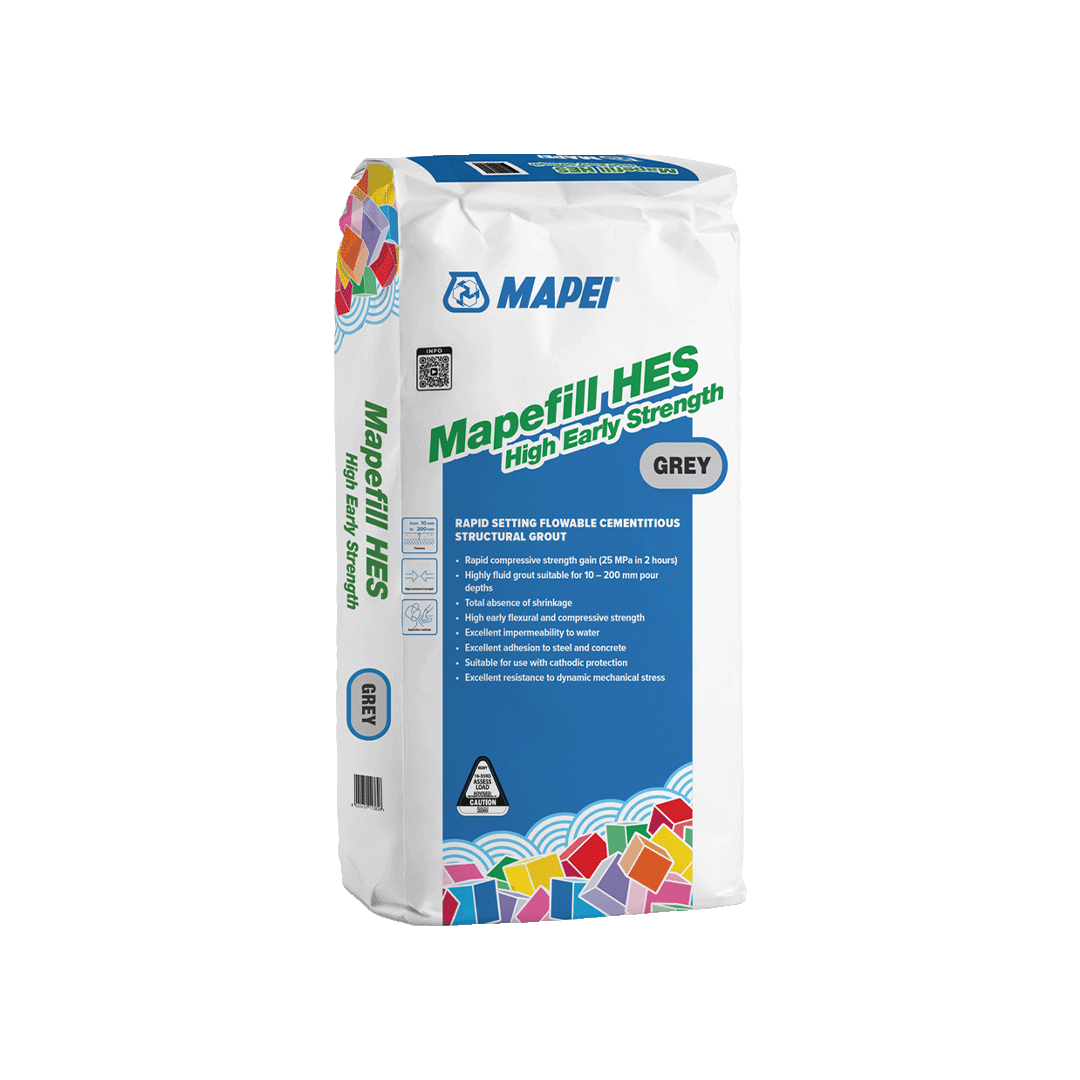

Supplied in 20 kg paper bags, Mapefill HES is suitable for contractors, builders, civil construction, industrial maintenance, structural repair and infrastructure projects requiring rapid-setting structural grout.

Contact us today for availability, pricing, pickup and delivery options.

Mapefill HES Advantages

• High early strength – achieves 25 MPa compressive strength in 2 hours.

• Rapid setting – designed for applications requiring a fast initial set.

• Fast strength gain – helps enable rapid return to service.

• Flowable grout – highly fluid consistency facilitates effective placement.

• 10–200 mm pour depths – suitable for a broad range of grouting and repair applications.

• Shrinkage compensated – designed to provide dimensional stability.

• Total absence of shrinkage – formulated to eliminate shrinkage.

• High early flexural and compressive strength – provides early mechanical performance.

• Excellent water impermeability – provides strong resistance to water penetration.

• Excellent adhesion – bonds effectively to steel and concrete.

• Suitable for cathodic protection – suitable for use in applications involving cathodic protection systems.

• Excellent dynamic mechanical stress resistance – suitable for applications exposed to mechanical loading and dynamic stress.

Rapid-Setting Structural Grout

Mapefill HES is designed for structural grouting applications where time is critical.

Its rapid setting and very early strength development make it particularly useful when machinery, infrastructure or structural elements need to be returned to service quickly.

With 25 MPa compressive strength after just 2 hours, Mapefill HES can help minimise downtime during repair, anchoring and grouting projects.

Applications

Mapefill HES is suitable for a wide range of structural and construction applications, including:

• Anchoring machinery

• Bearing pad grouting

• Baseplate grouting

• Anchoring metallic structures

• Filling rigid joints between concrete elements

• Filling rigid joints between precast elements

• Structural grouting

• Fast-return-to-service grouting

• Concrete repair

• Beam repairs

• Column repairs

• Industrial maintenance

• Infrastructure repair

Machinery, Bearing Pad & Baseplate Grouting

Mapefill HES is well suited to anchoring machinery, bearing pads and baseplates where a rapid return to service is required.

Its flowable consistency allows the grout to fill suitable spaces beneath and around structural components, while its rapid strength gain helps reduce downtime.

Anchoring Metallic Structures

Mapefill HES can be used for anchoring metallic structures where rapid setting and early strength development are important.

This makes it a practical option for construction and industrial applications where structural elements need to be brought into service quickly.

Rigid Joints Between Concrete & Precast Elements

Mapefill HES is suitable for filling rigid joints between concrete and precast elements.

Its flowable characteristics help facilitate placement into suitable joints, while its shrinkage-compensated formulation helps provide dimensional stability.

Concrete Repair – Beams & Columns

Mapefill HES is also designed for concrete repair applications, including repairs to beams and columns.

Its rapid strength development makes it particularly useful where repairs need to achieve early mechanical performance and the structure or facility needs to return to service quickly.

10–200 mm Pour Depths

Mapefill HES is a highly fluid structural grout suitable for pour depths from 10 mm to 200 mm.

This provides flexibility for a range of anchoring, grouting and concrete repair applications.

Always follow the manufacturer's current technical documentation for substrate preparation, mixing, placement and curing requirements.

High Early Strength & Rapid Return to Service

One of the key advantages of Mapefill HES is its extremely rapid strength development.

25 MPa compressive strength in 2 hours

This makes Mapefill HES particularly suitable for:

• Emergency repairs

• Time-critical construction

• Industrial maintenance

• Rapid machinery installation

• Infrastructure repairs

• Fast-return-to-service applications

• Projects where downtime must be minimised

Technical Data

PropertySpecificationProductMapefill HESTypeHigh early strength structural groutFormulationCementitiousConsistencyFlowableSettingRapid settingCompressive Strength25 MPa at 2 hoursApplication / Pour Depth10–200 mmShrinkageShrinkage compensated / total absence of shrinkageWater ImpermeabilityExcellentAdhesionExcellent adhesion to steel and concreteDynamic Mechanical Stress ResistanceExcellentCathodic ProtectionSuitableConsumptionApprox. 20 kg/m² at 10 mm thicknessPackaging20 kg paper bags

Consumption

Mapefill HES has an approximate consumption of:

20 kg/m² at 10 mm thickness

Actual consumption will depend on the specific application, substrate conditions, application thickness and site requirements.

For project-specific quantity calculations, contact us with your required dimensions and application details.

20 kg Paper Bags Available

Mapefill HES is supplied in 20 kg paper bags, providing a convenient format for professional construction, repair and grouting projects.

Whether you require Mapefill HES for a small urgent repair or a larger structural project, contact us to discuss availability, quantities, pricing and delivery.

Mapefill HES Perth & Western Australia

Looking for Mapefill HES in Perth?

We have Mapefill HES available for pickup in Perth, with delivery available throughout Western Australia.

We supply high-performance structural grouts and concrete repair products to builders, civil contractors, structural contractors, industrial maintenance companies and construction professionals.

Order Mapefill HES

Need a rapid-setting, high early strength structural grout for a time-critical project?

Contact us today for Mapefill HES availability, pricing and delivery options.

20 kg Paper Bags | 25 MPa in 2 Hours | 10–200 mm Pour Depths | Perth Pickup | WA Delivery

Frequently Asked Questions

What is Mapefill HES?

Mapefill HES is a high early strength, rapid-setting, flowable shrinkage-compensated cementitious structural grout designed for anchoring, grouting and concrete repair applications.

How quickly does Mapefill HES gain strength?

Mapefill HES achieves 25 MPa compressive strength in 2 hours, making it suitable for applications where rapid strength gain and return to service are required.

What is Mapefill HES used for?

Mapefill HES can be used for machinery, bearing pad and baseplate grouting, anchoring metallic structures, rigid joints between concrete and precast elements, concrete repairs, and other applications requiring rapid strength development.

What pour depths is Mapefill HES suitable for?

Mapefill HES is suitable for pour depths from 10 mm to 200 mm.

Is Mapefill HES shrinkage compensated?

Yes. Mapefill HES is formulated as a shrinkage-compensated grout with total absence of shrinkage.

Can Mapefill HES be used for machinery and baseplate grouting?

Yes. Mapefill HES is specifically suited to anchoring machinery, bearing pads and baseplates, particularly where rapid return to service is required.

Can Mapefill HES be used for concrete repairs?

Yes. Mapefill HES is suitable for concrete repair applications, including repairs to beams and columns.

Is Mapefill HES suitable for cathodic protection?

Yes. Mapefill HES is suitable for use with cathodic protection applications.

Where can I buy Mapefill HES in Western Australia?

Mapefill HES is available for pickup in Perth and delivery throughout Western Australia. Contact us for current availability, pricing and delivery options.
